MultiGrip

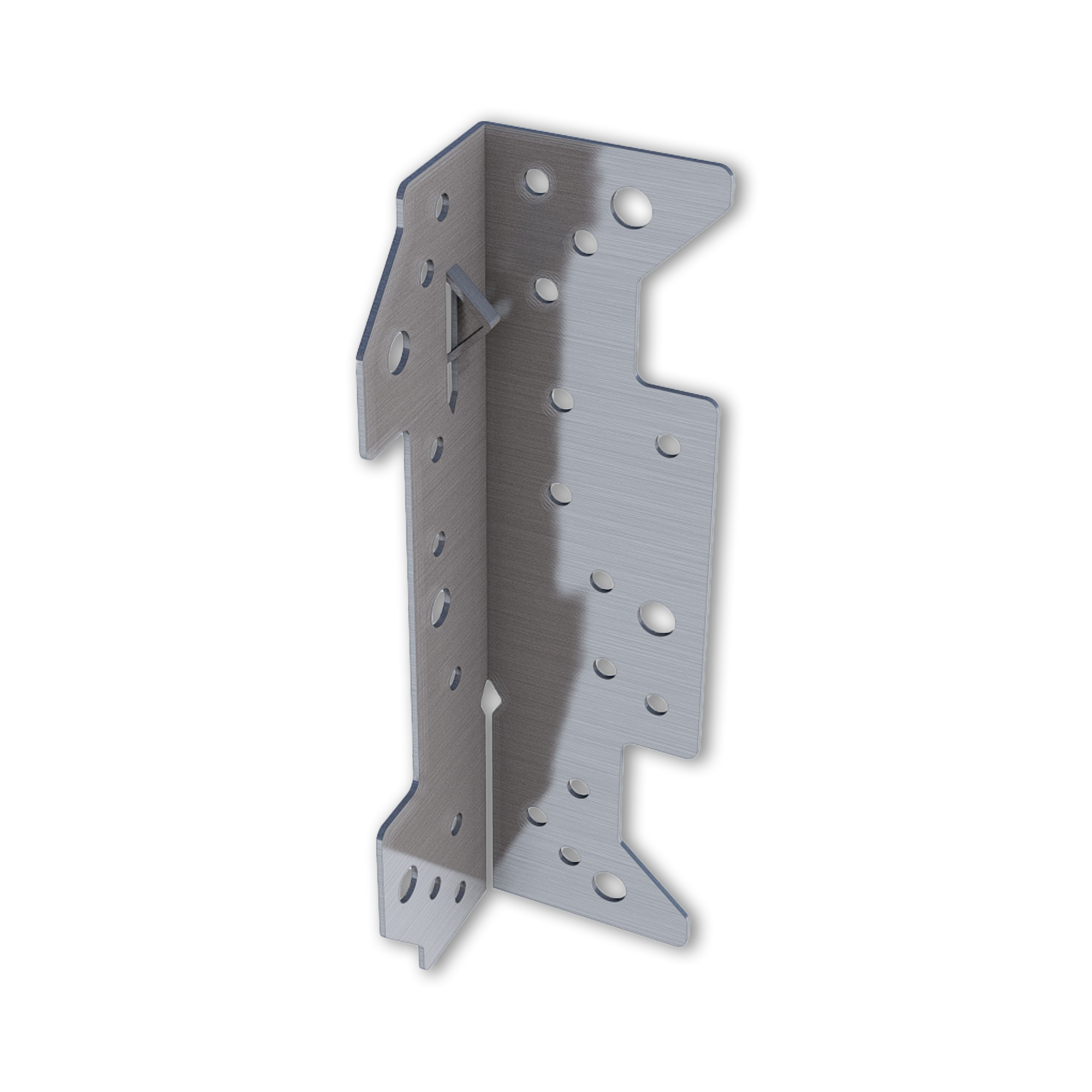

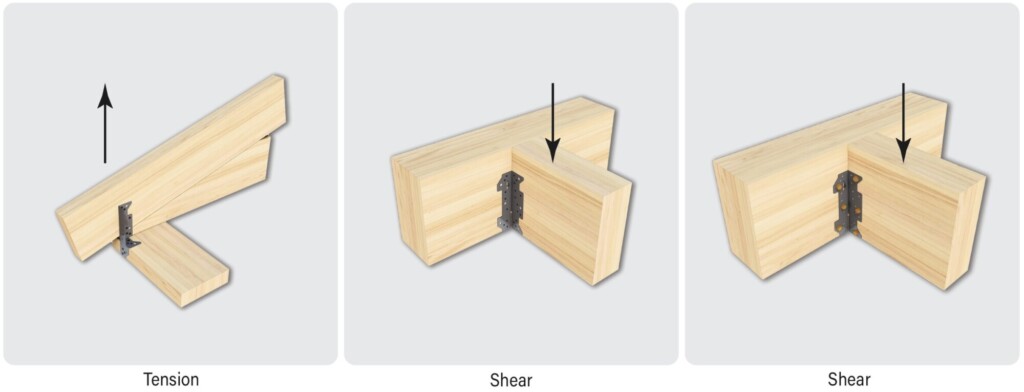

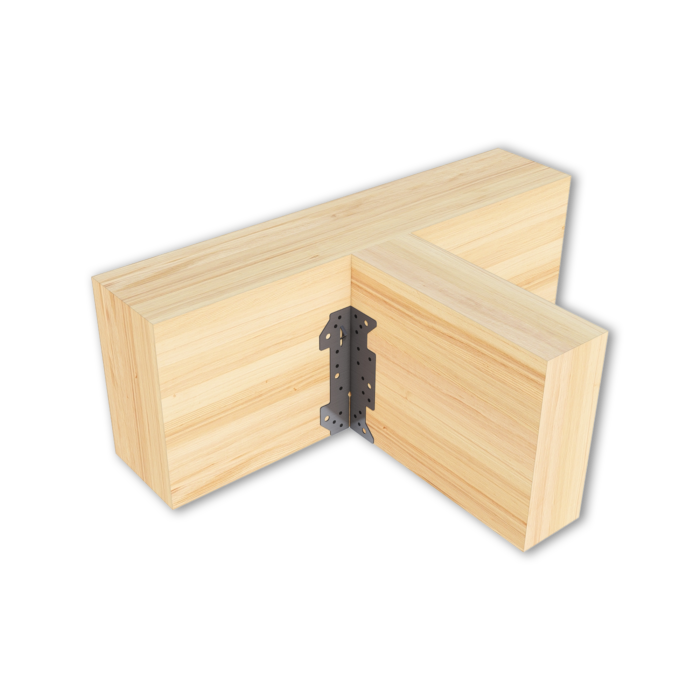

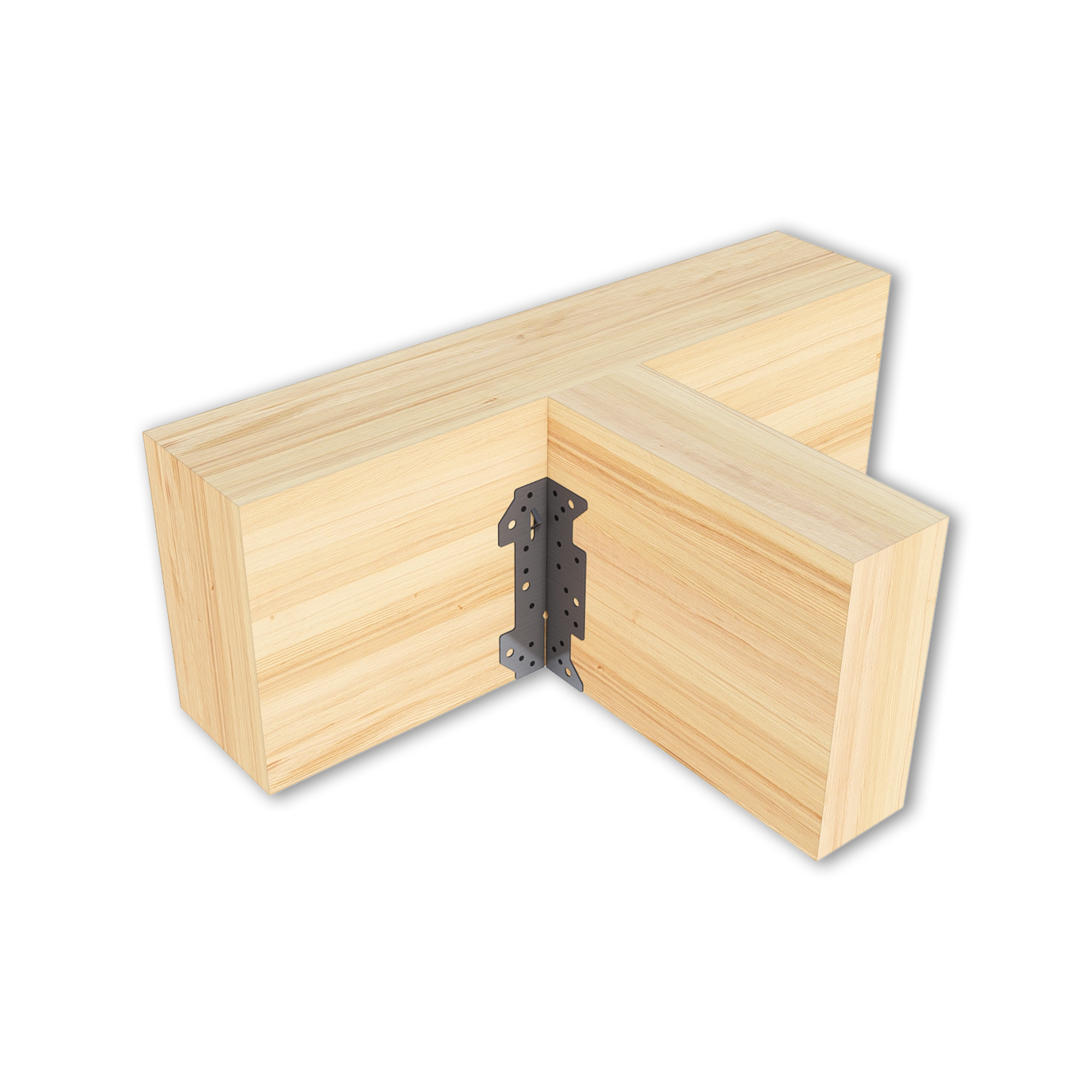

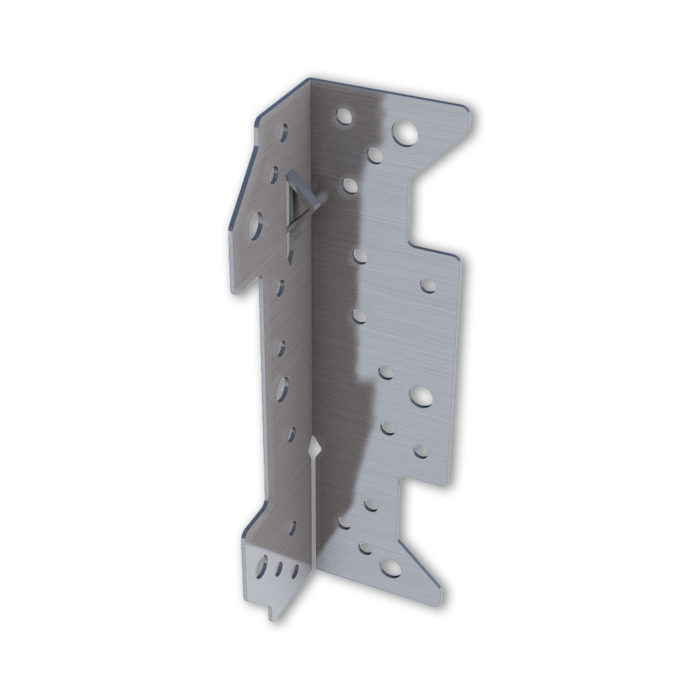

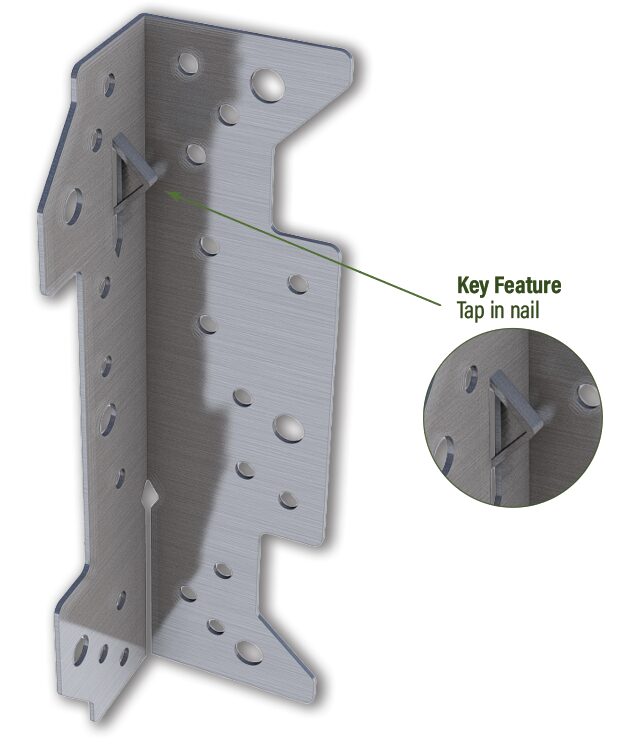

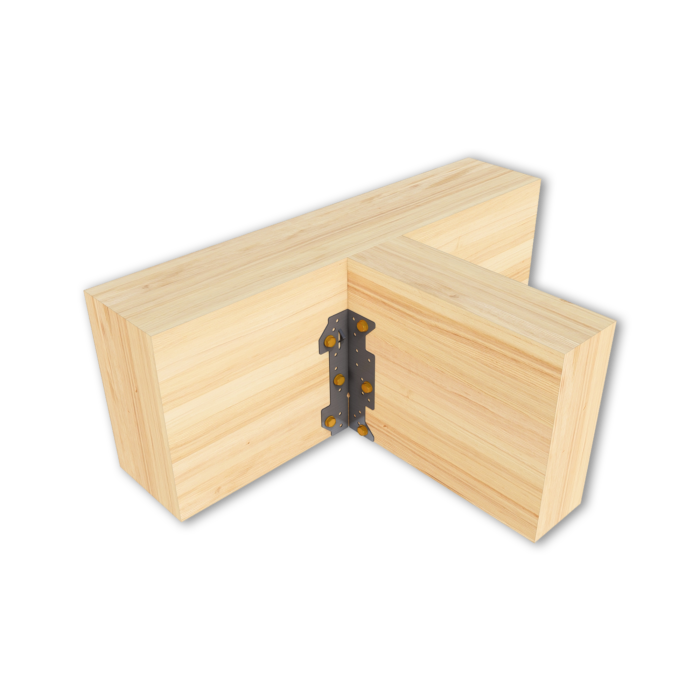

ECKO MultiGrips are a versatile bracket that can be easily adjusted onsite to cover multiple fixing scenarios. Suitable for high load applications such as a tie-down connector for trusses or rafter to top-plates and for fixing joists to the face of bearers.
Product
| Product Code | Size (mm) | Finish | PCS / Pack |
| BMG130-25 | 130 | Z275 Galvanised Steel | 25 |
| BMG130SS-25 | 130 | 304 Stainless Steel | 25 |
Materials:
1.0mm G300 Z275 Galvanised Steel
1.0mm 304 Stainless Steel

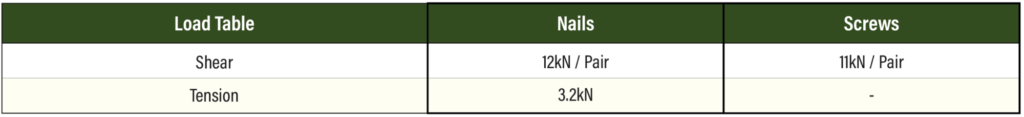

Characteristic Strengths have been derived from testing in accordance with EM1 as specified in NZ3604:2011
Technical
