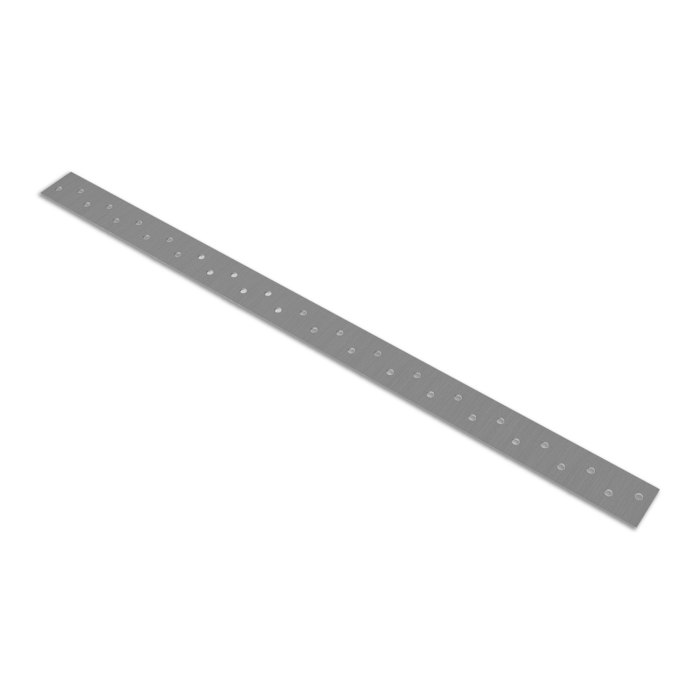

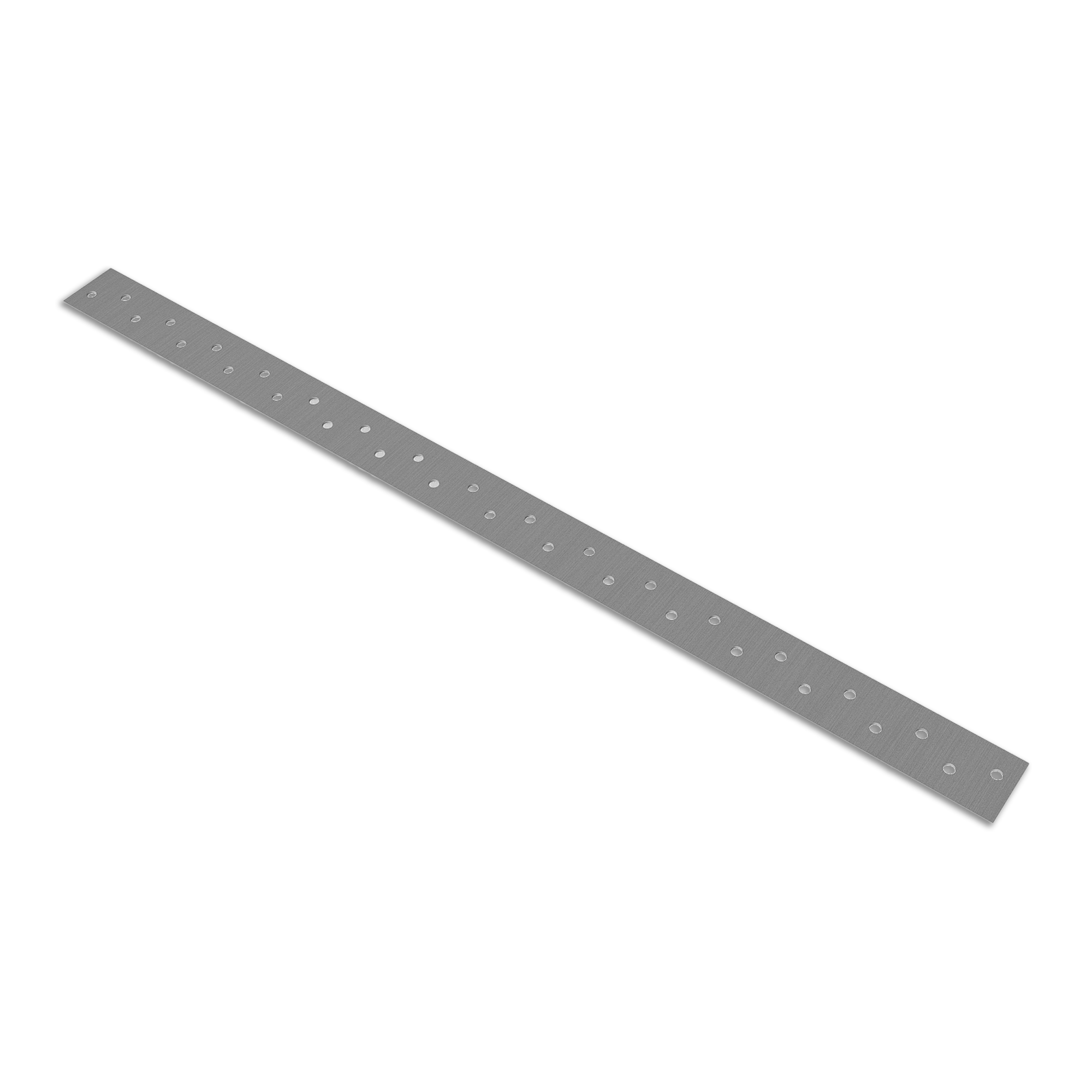

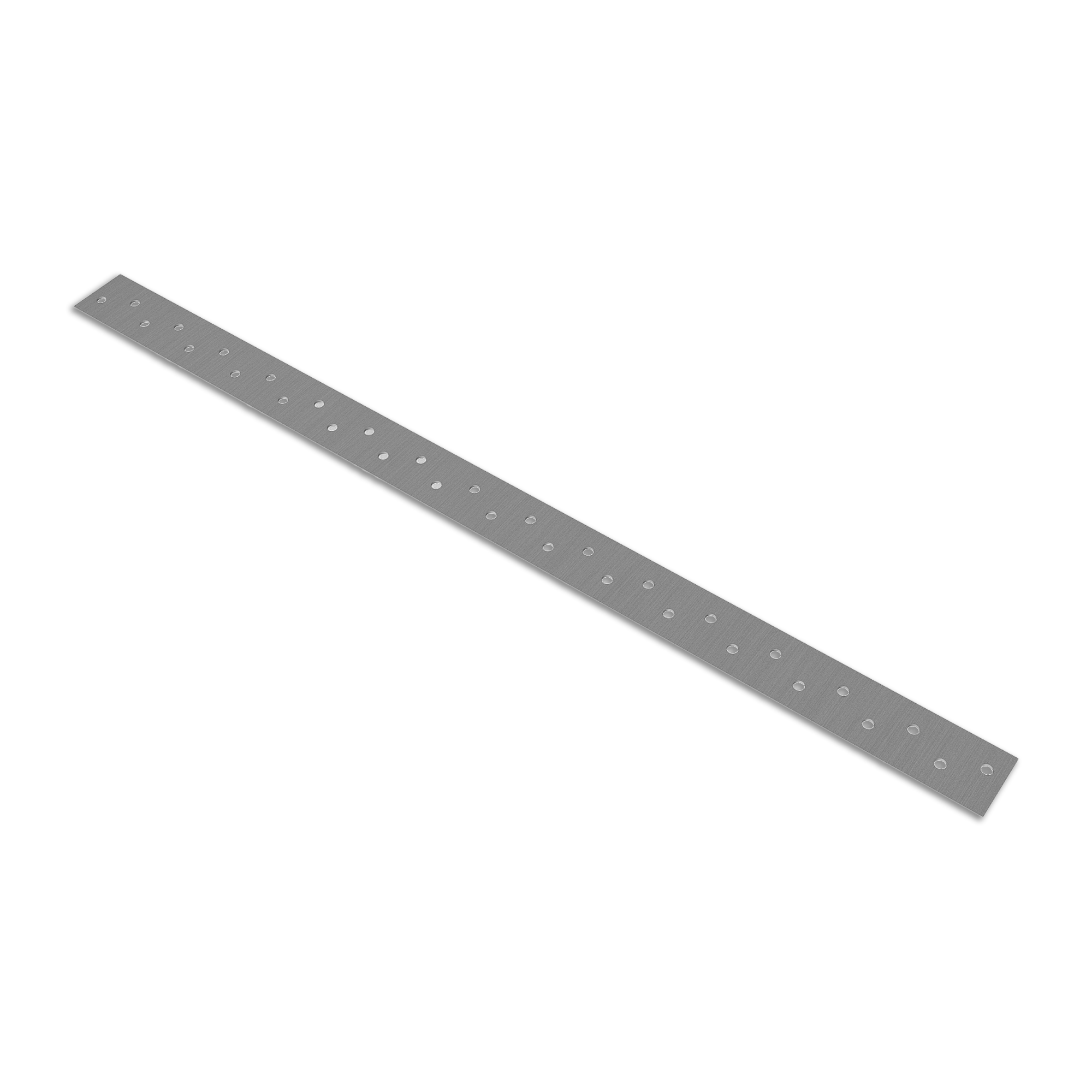

Steel Strap
Steel straps are a versatile fixing option widely specified in NZS3604:2011 for stud to bottom/top plate, lintel and rafter connections. As per NZS3604:2011 a 6kN capacity can be achieved with one strap (6 x 30 x 3.15mm nails each end) or 12kN with two straps (6 x 30 x 3.15mm nails each end).
Product

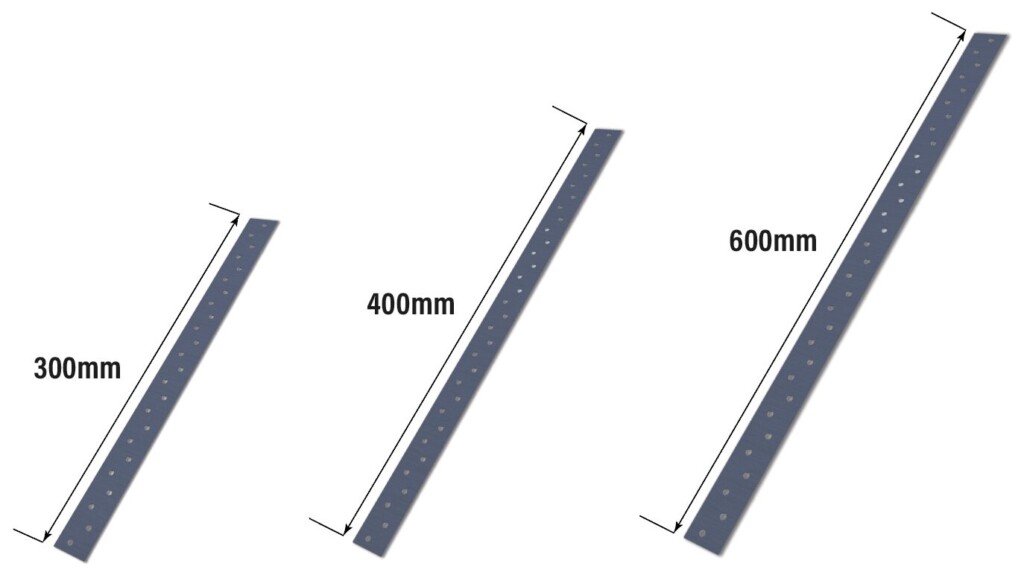

| Product Code | Size (mm) | Finish | PCS / Pack |
| BSBS300-100 | 300 | Z275 Galvanised Steel | 100 |
| BSBS400-100 | 400 | Z275 Galvanised Steel | 100 |
| BSBS600-100 | 600 | Z275 Galvanised Steel | 100 |
| BSBS300SS-100 | 300 | 304 Stainless Steel | 100 |
| BSBS400SS-100 | 400 | 304 Stainless Steel | 100 |
| BSBS600SS-100 | 600 | 304 Stainless Steel | 100 |

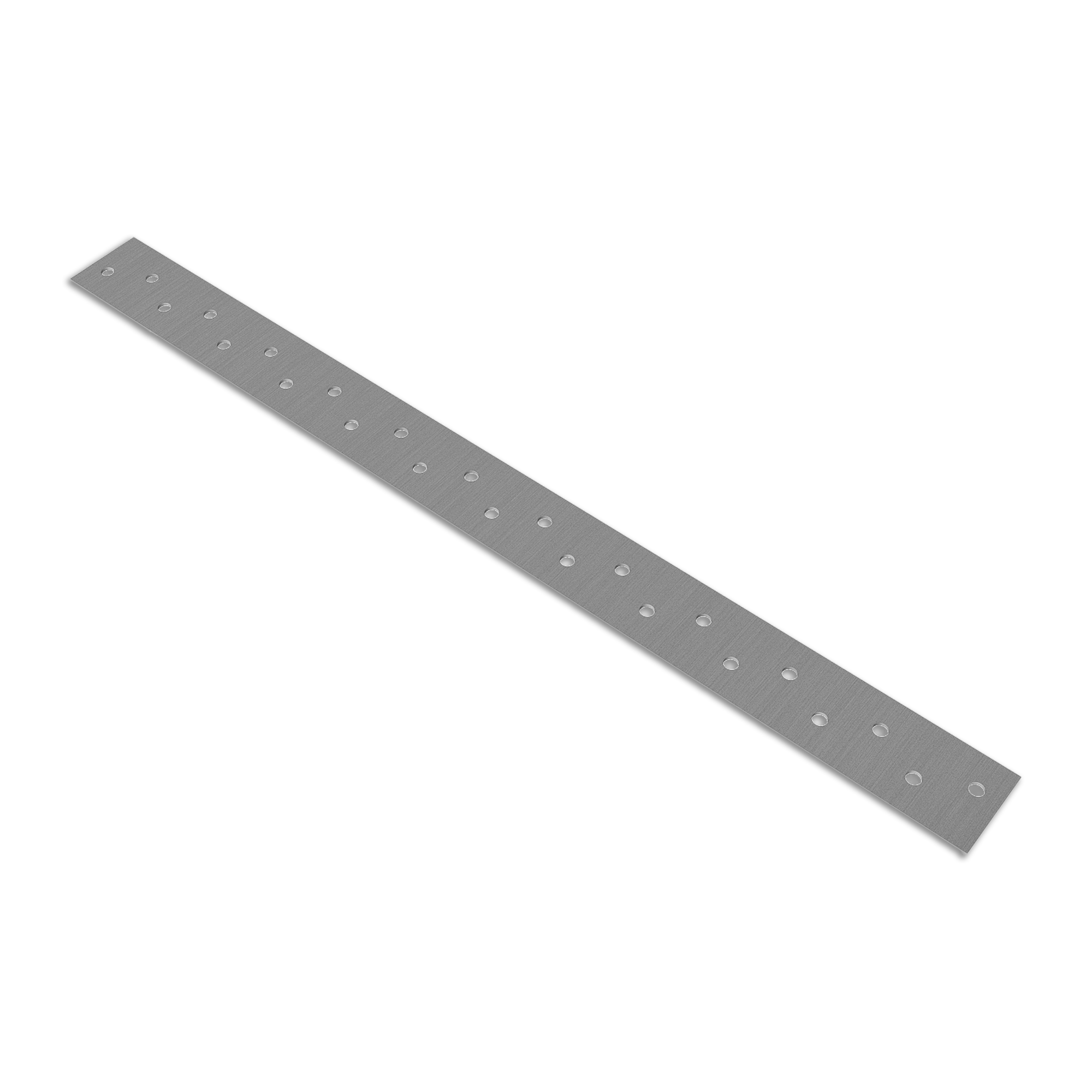

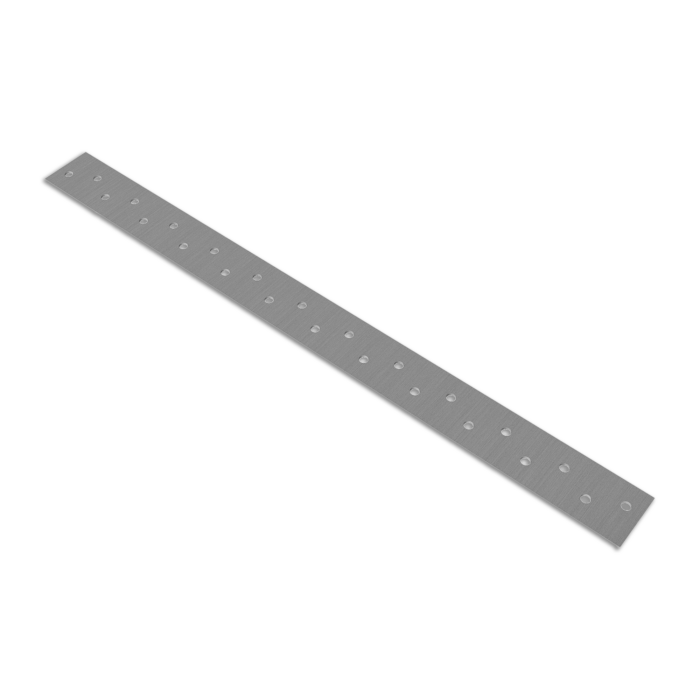

Materials:
25 x 1.0mm G300 Z275 Galvanised Steel
25 x 1.0mm 304 Stainless Steel

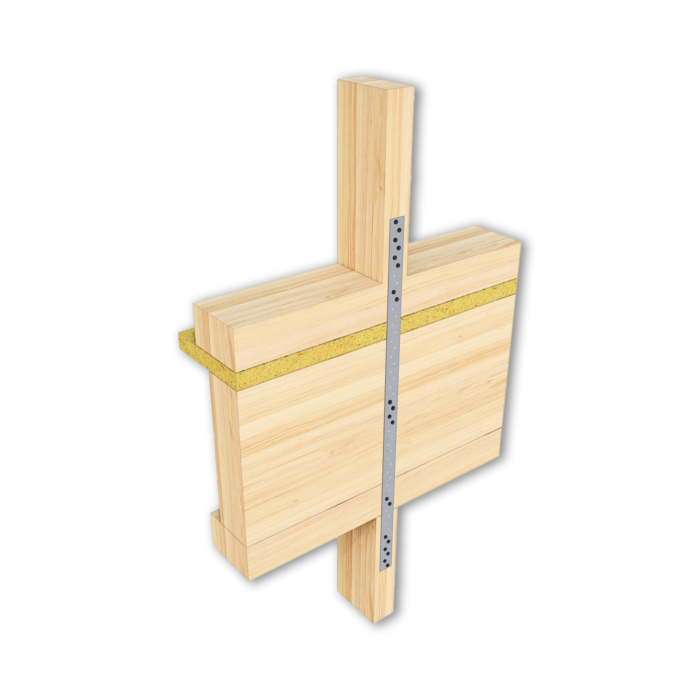

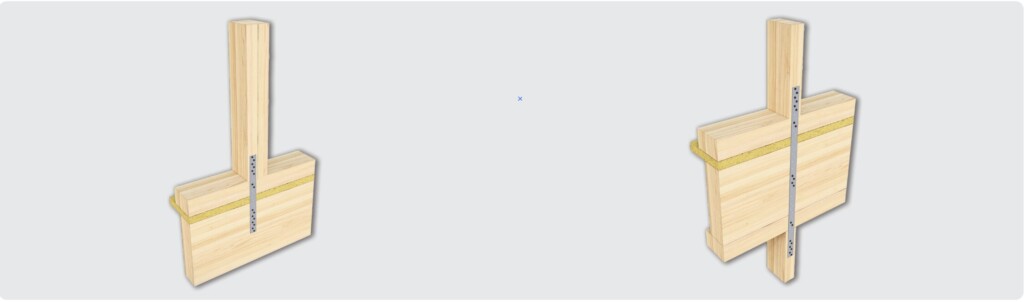

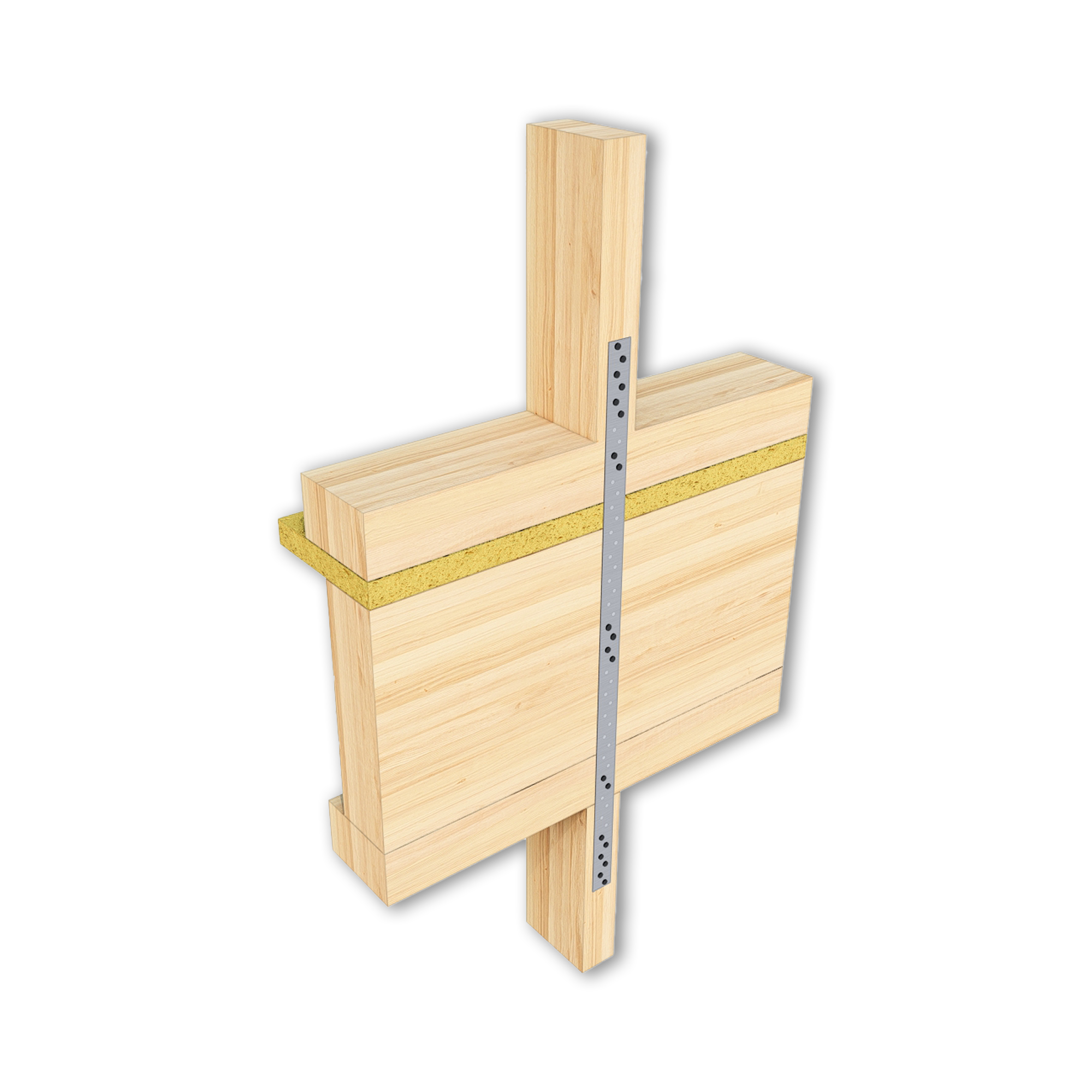

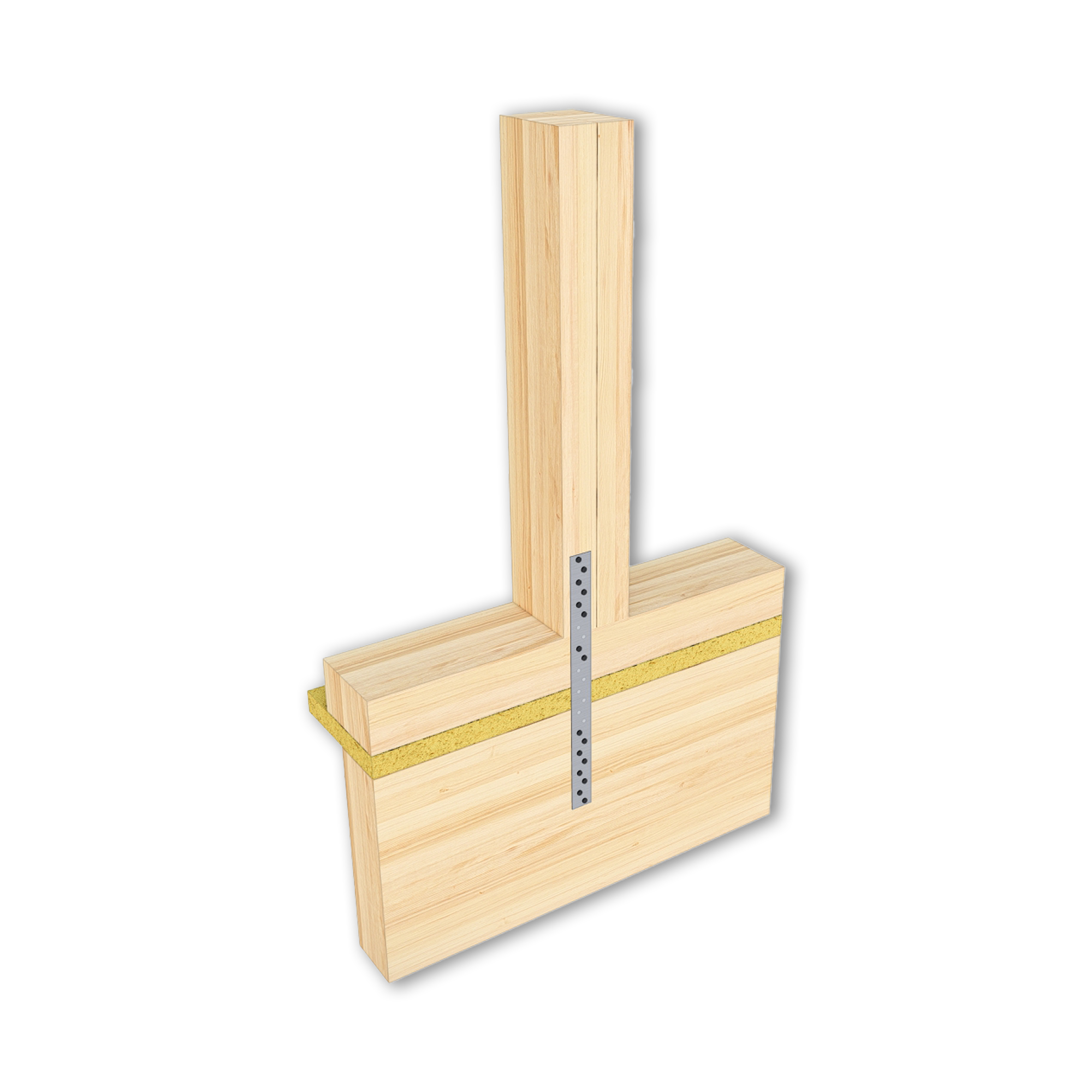

Stud-to-Timber Floor Tie-Down
As per NZS3604:2011 clause 8.6.1.8 (figure 8.12)
Note: 6 x 30 x 3.15mm nails required in each end of strap to achieve required rating.

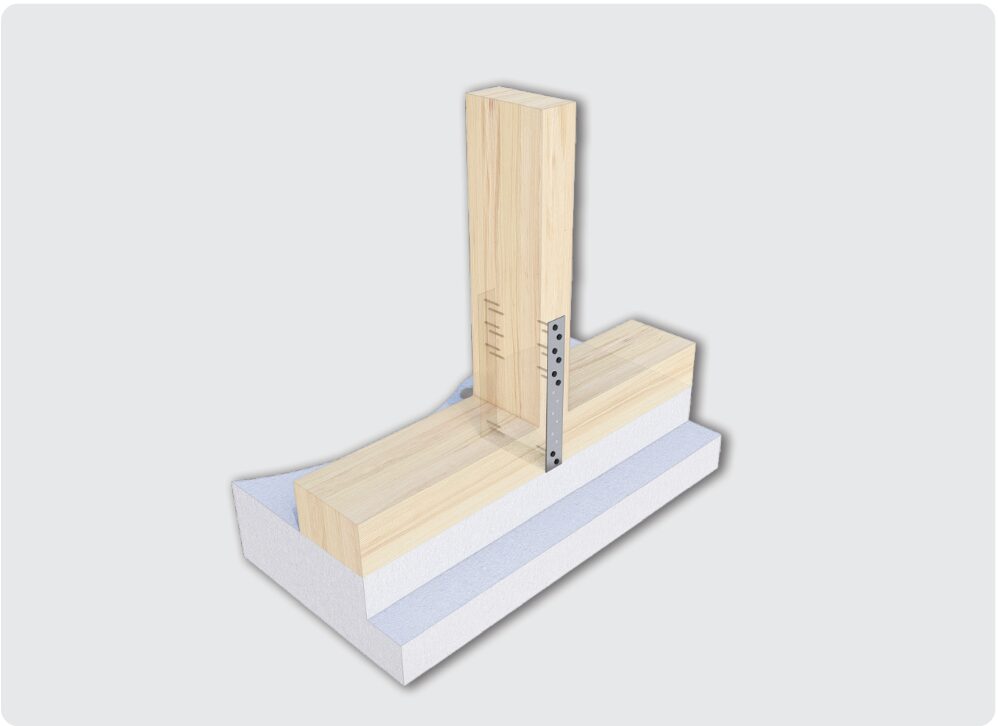

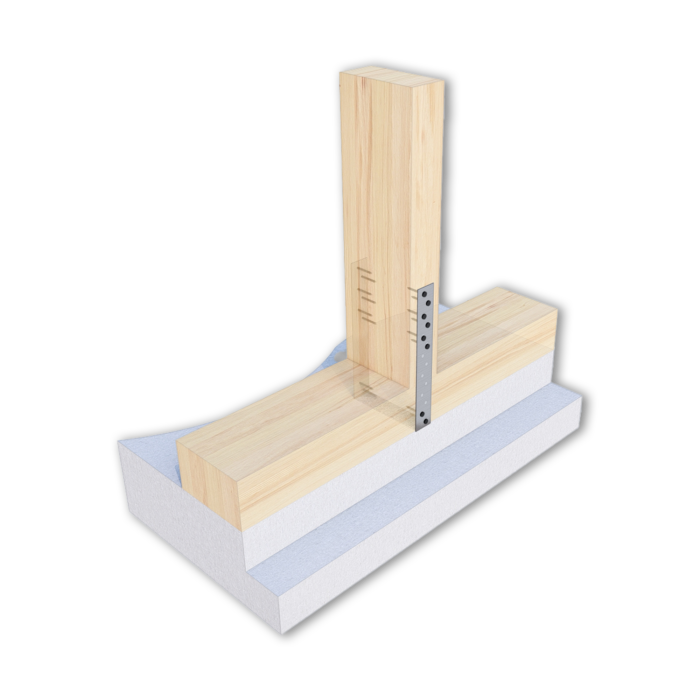

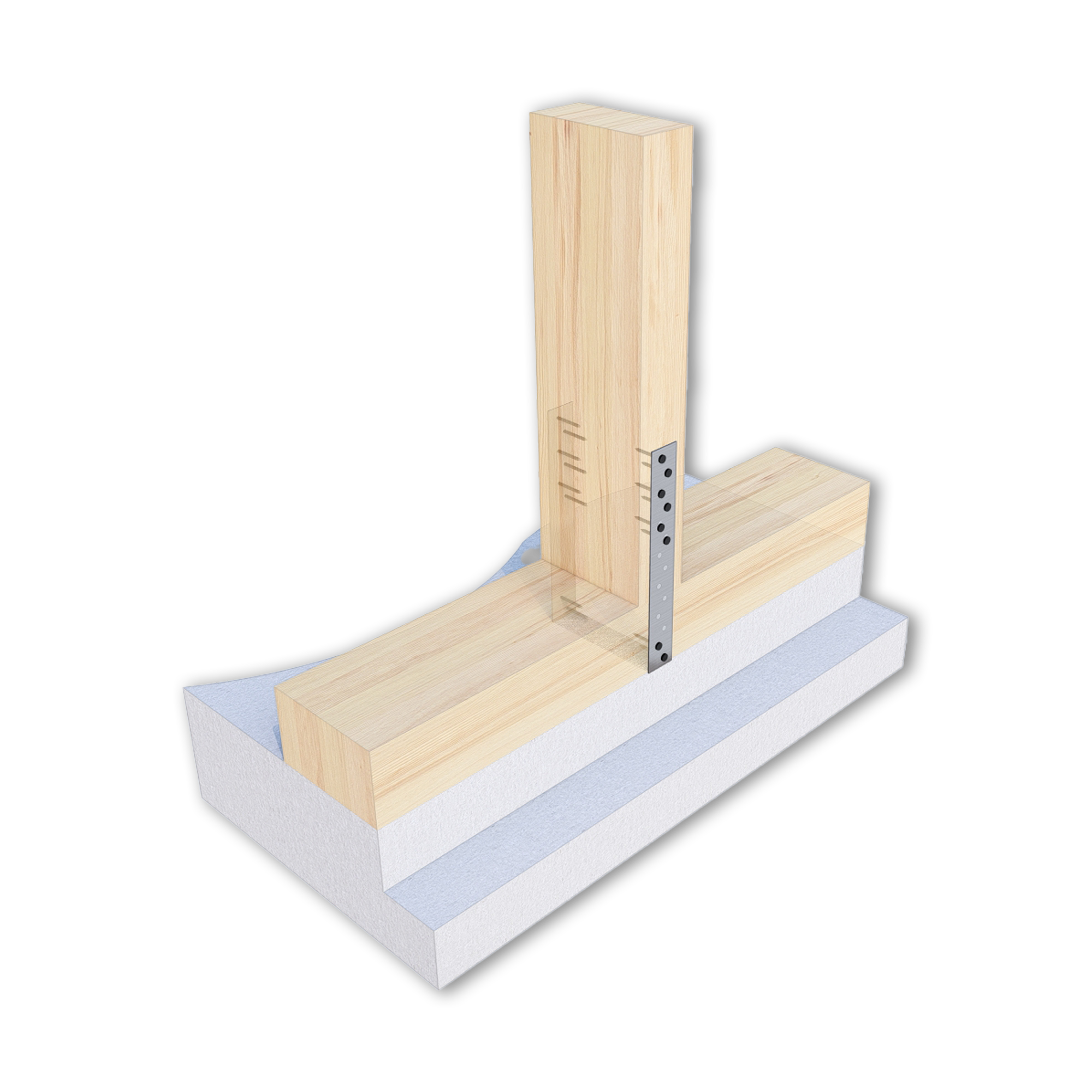

Stud-to-Bottom Plate Fixing
As per NZS3604:2011 clause 8.6.1.8 (figure 8.12)
Note: Strap must be taken under bottom plate and 150mm up each side with 6 x 30 x 3.15mm nails required in each end of strap to achieve required rating.

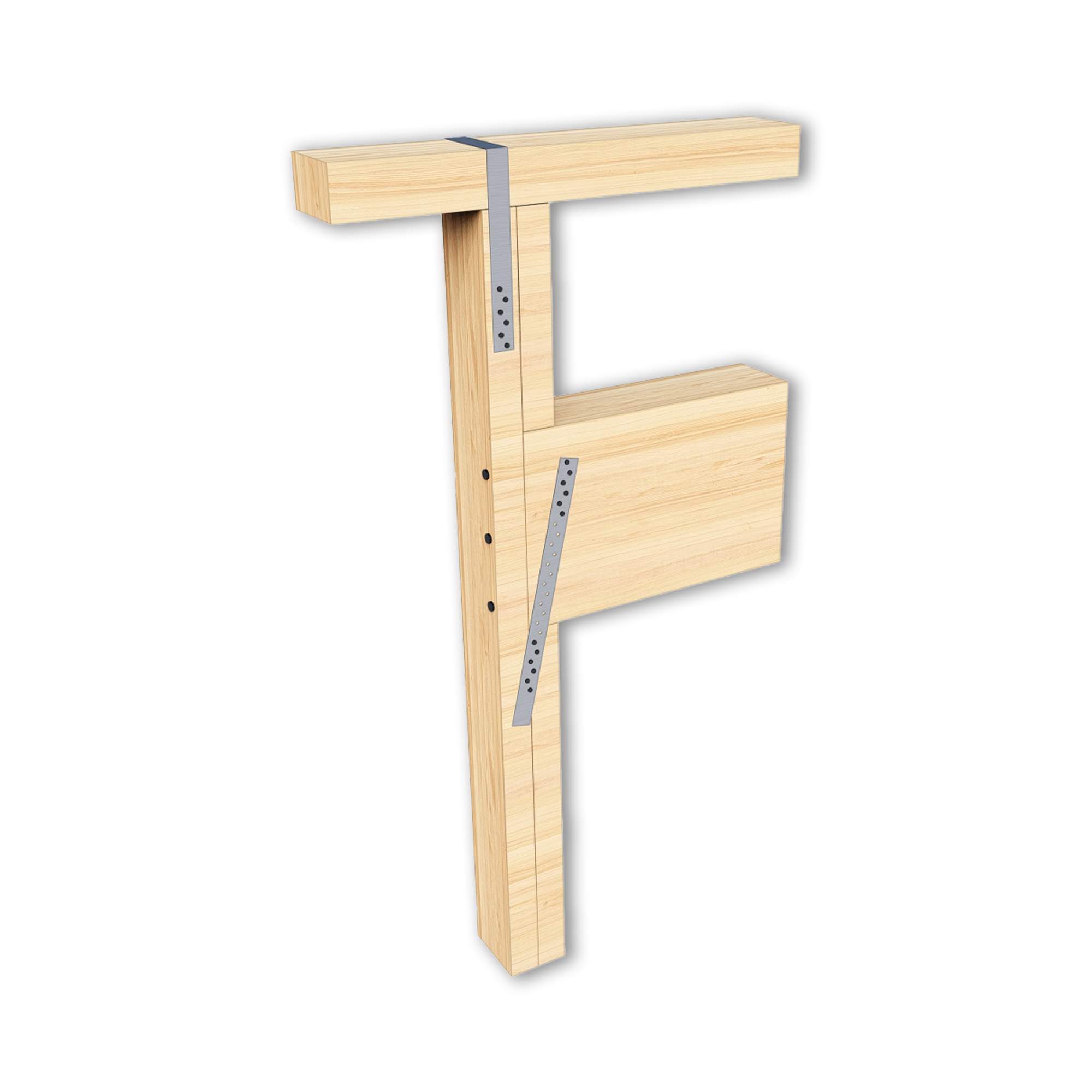

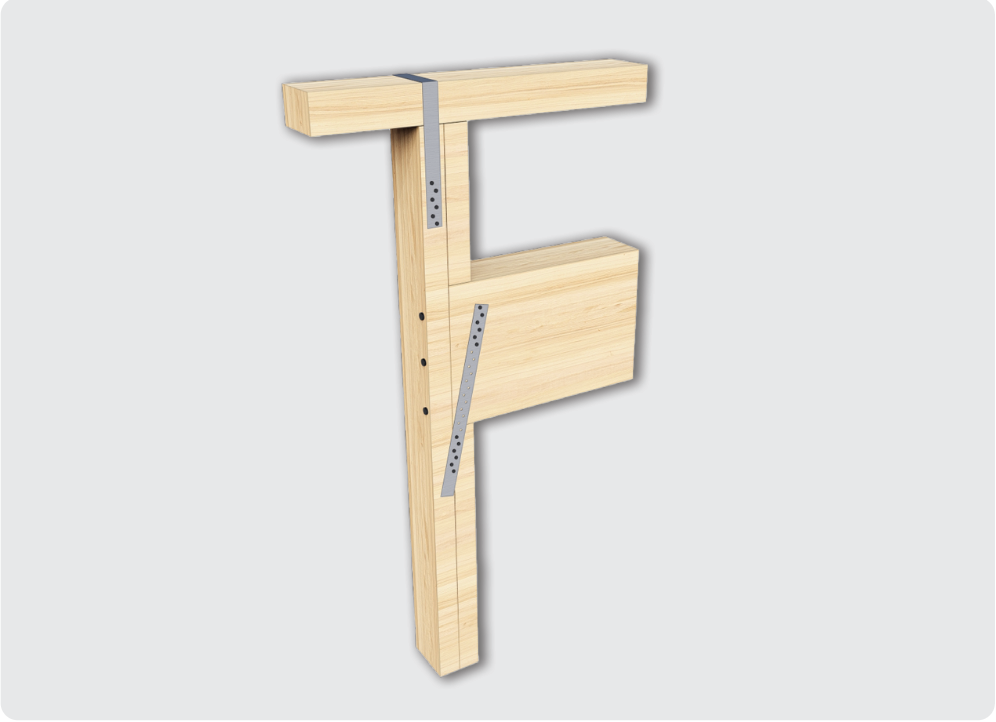

Lintel Fixing
As per NZS3604:2011 clause 8.6.1.8 (figure 8.12)
Note: 6 x 30 x 3.15mm nails required in each end of strap to achieve required rating.

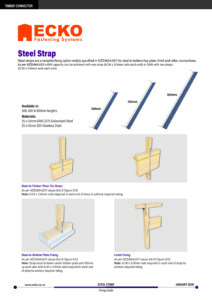

Fixing Guide
