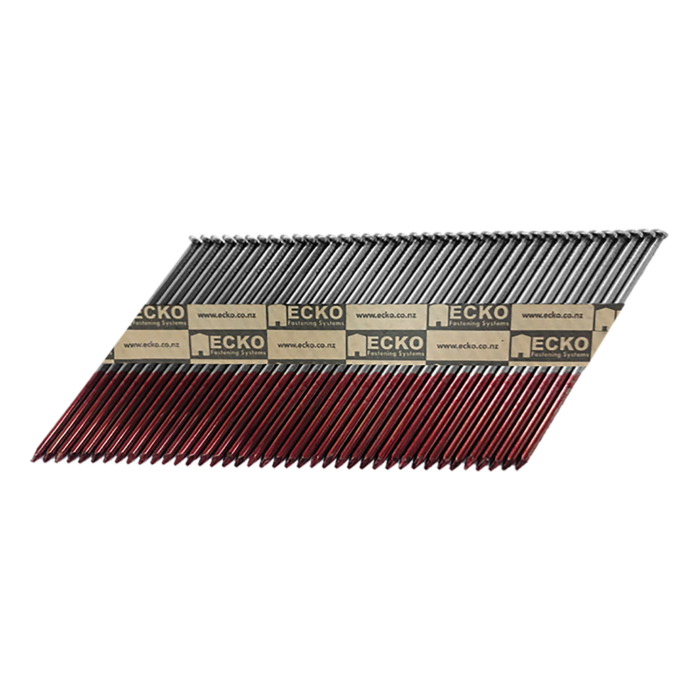

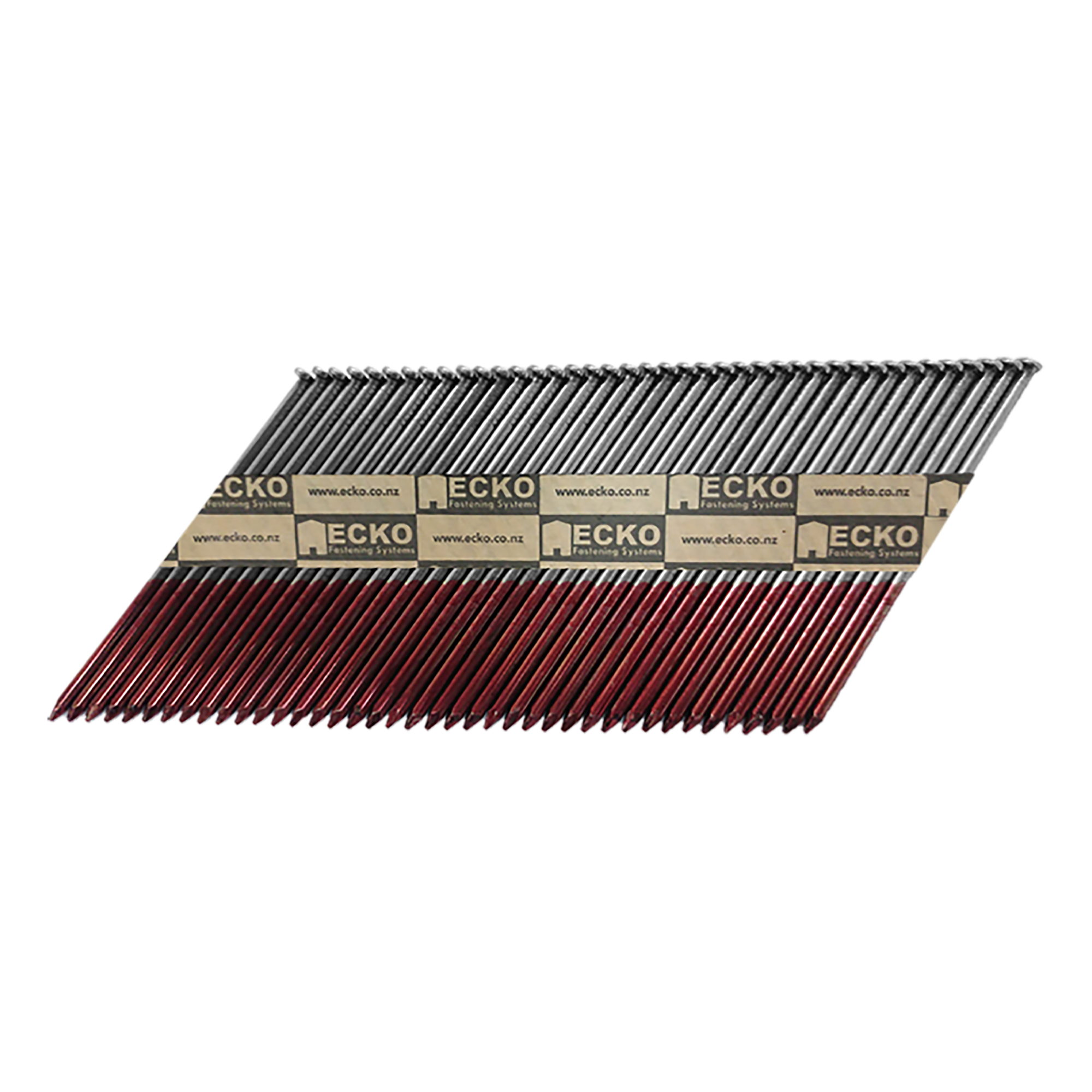

D Head Paper Collated Framing Nails
Nail length: 50mm – 90mm
Finish: Bright, Galvanised, 304 S/Steel
To suit: ECKO Ultimate90® Gas Framer(GTND90G), ECKO FrameTec90® Construction Air Framer(ND90S), ECKO FrameTec100 Construction Air Framer(ND100S)
Fasteners
| Gasless Pack | ||||||
| Product Code | Head Type | Size | Finish | Shank | Carton QTY | Fuel Cell(s) |
| ND-3465 | D Head | 65 x 2.87mm | Bright | Smooth | 3000 | - |

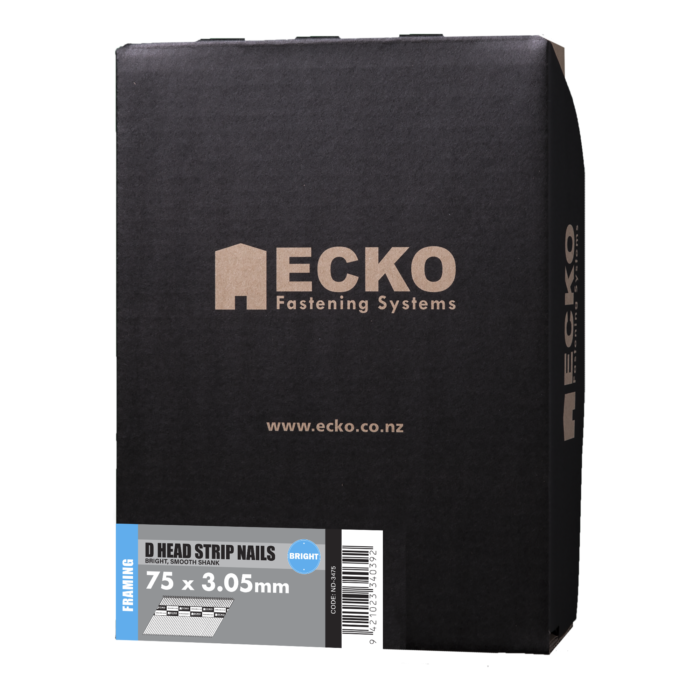

| ND-3475 | D Head | 75 x 3.15mm | Bright | Smooth | 3000 | - |
| ND-3488L | D Head | 90 x 3.15mm | Bright | Smooth | 3000 | - |

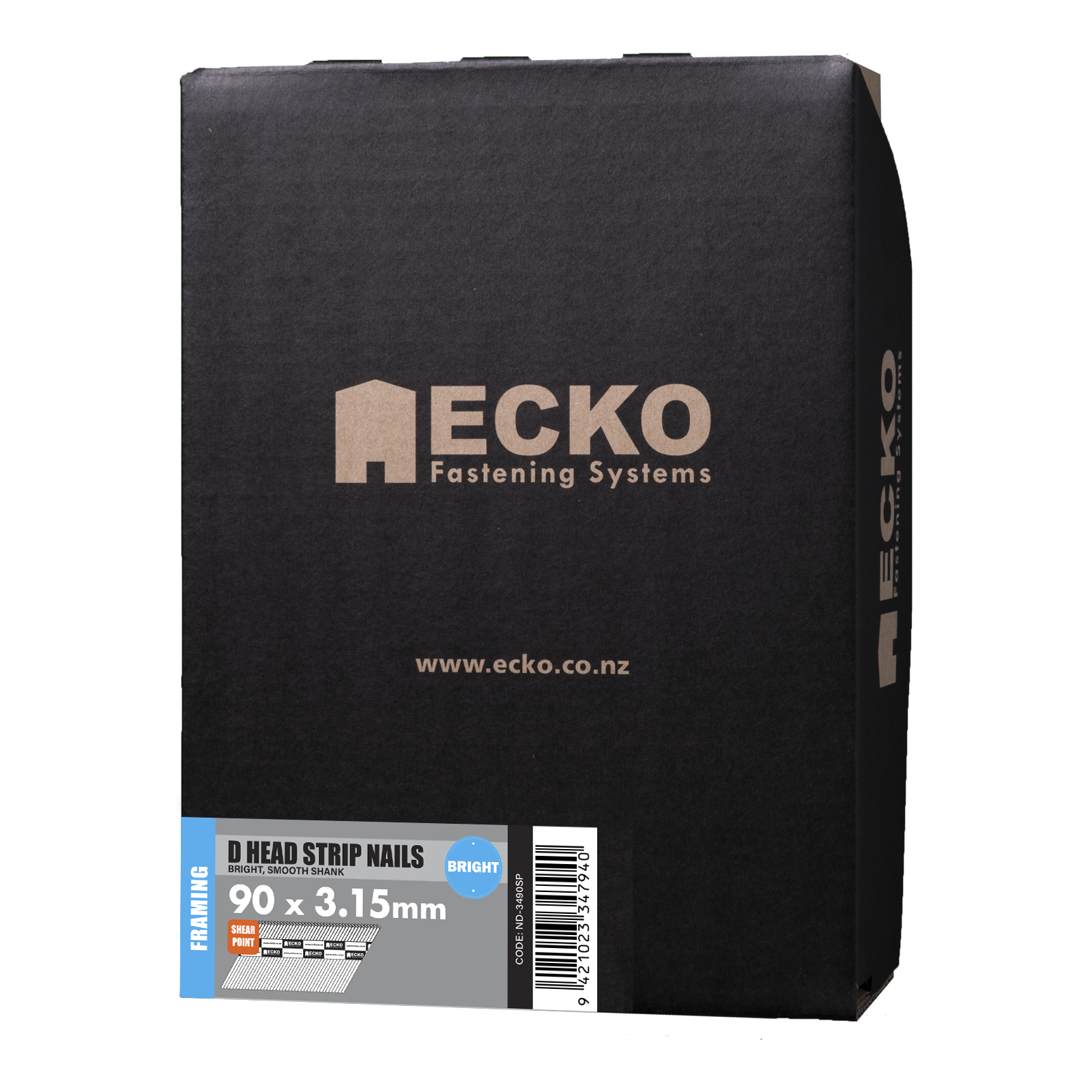

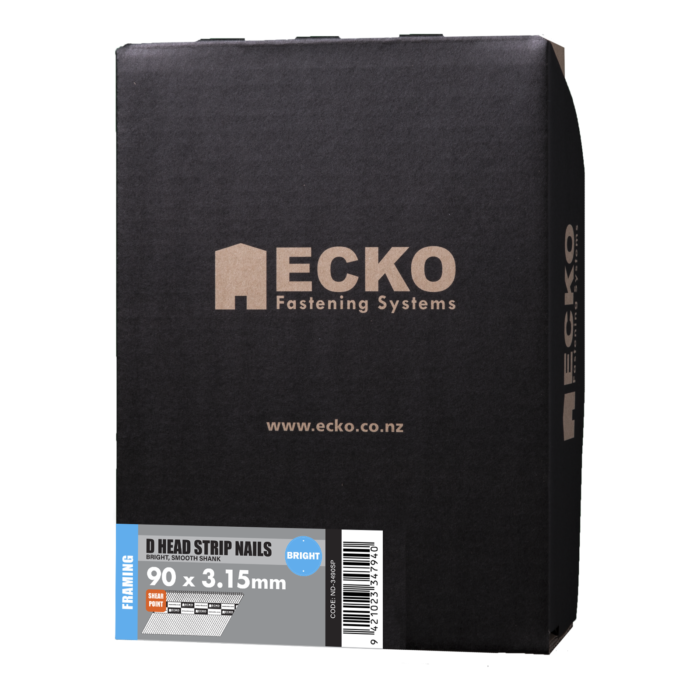

| ND-3490SP | D Head | 90 x 3.15mm | Bright | Smooth (Shear Point) | 3000 | - |

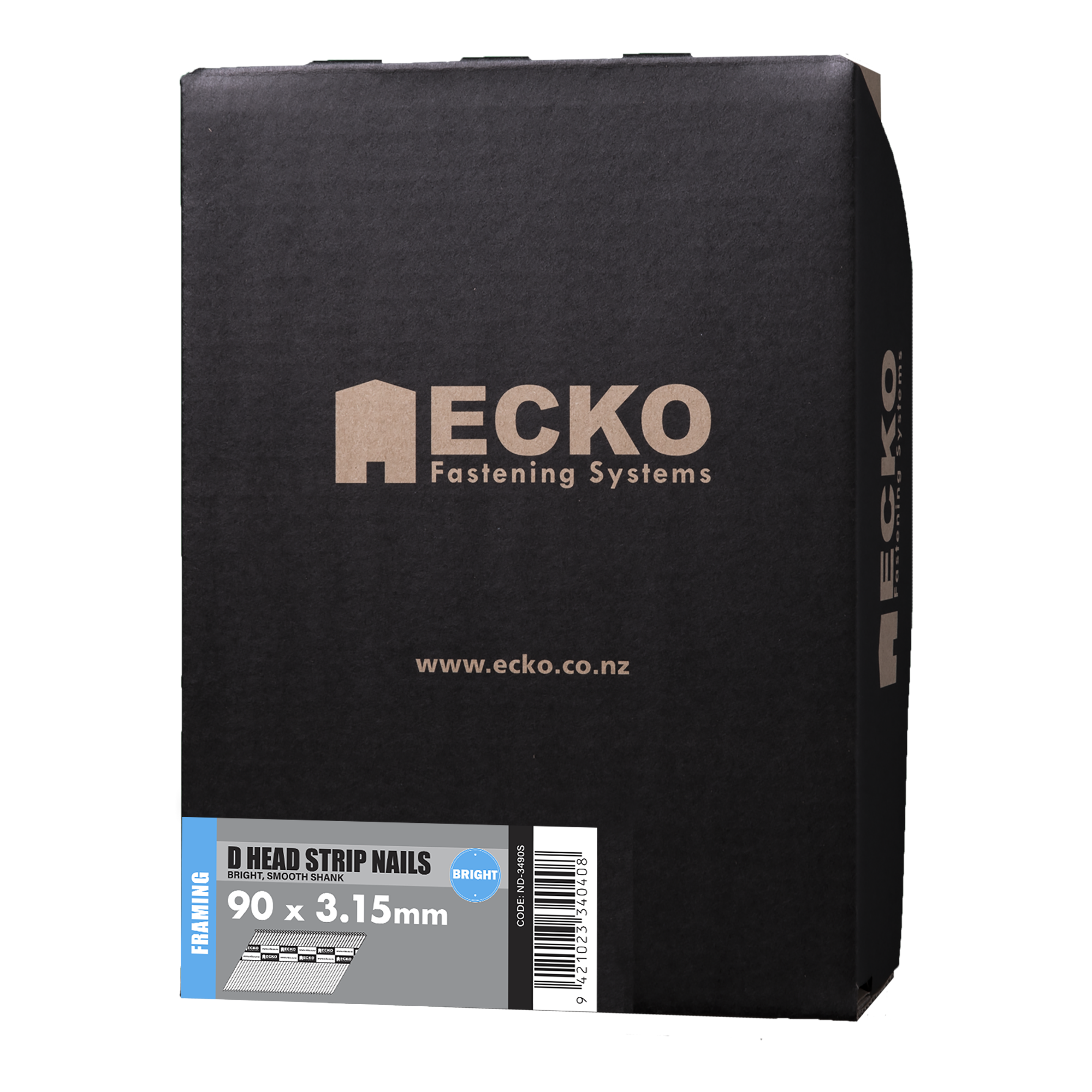

| ND-3490S | D Head | 90 x 3.15mm | Bright | Smooth | 3000 | - |
| NDHP-3450R | D Head | 50 x 2.87mm | Galvanised | Ring | 3000 | - |
| NDHP-3465R | D Head | 65 x 2.87mm | Galvanised | Ring | 3000 | - |
| NDHP-3475R | D Head | 75 x 3.15mm | Galvanised | Ring | 3000 | - |
| NDHP-3490 | D Head | 90 x 3.15mm | Galvanised | Smooth | 3000 | - |
| Handy Pack | - | |||||
| NDSS-3450R | D Head | 50 x 2.87mm | 304 S/Steel | Ring | 1000 | - |
| NDSS-3465R | D Head | 65 x 2.87mm | 304 S/Steel | Ring | 1000 | - |
| NDSS-3475R | D Head | 75 x 3.15mm | 304 S/Steel | Ring | 1000 | - |
| NDSS-3490R | D Head | 90 x 3.15mm | 304 S/Steel | Ring | 1000 | - |
| ND-3465H | D Head | 65 x 2.87mm | Bright | Smooth | 1000 | - |
| ND-3475H | D Head | 75 x 3.15mm | Bright | Smooth | 1000 | - |
| ND-3490SH | D Head | 90 x 3.15mm | Bright | Smooth | 1000 | - |
| NDHP-3450RH | D Head | 50 x 2.87mm | Galvanised | Ring | 1000 | - |
| NDHP-3465RH | D Head | 65 x 2.87mm | Galvanised | Ring | 1000 | - |
| NDHP-3475RH | D Head | 75 x 3.15mm | Galvanised | Ring | 1000 | - |
| NDHP-3490H | D Head | 90 x 3.15mm | Galvanised | Smooth | 1000 | - |
| Gas Pack | ||||||
| ND-3465V | D Head | 65 x 2.87mm | Bright | Smooth | 3000 | 3 |
| ND-3475V | D Head | 75 x 3.15mm | Bright | Smooth | 3000 | 3 |
| ND-3490V | D Head | 90 x 3.15mm | Bright | Smooth | 3000 | 3 |
| NDHP-3450RV | D Head | 50 x 2.87mm | Galvanised | Ring | 3000 | 3 |
| NDHP-3465RV | D Head | 65 x 2.87mm | Galvanised | Ring | 3000 | 3 |
| NDHP-3475RV | D Head | 75 x 3.15mm | Galvanised | Ring | 3000 | 3 |
| NDHP-3490V | D Head | 90 x 3.15mm | Galvanised | Smooth | 3000 | 3 |
| NDSS-3450RV | D Head | 50 x 2.87mm | 304 S/Steel | Ring | 1000 | 1 |
| NDSS-3465RV | D Head | 65 x 2.87mm | 304 S/Steel | Ring | 1000 | 1 |
| NDSS-3475RV | D Head | 75 x 3.15mm | 304 S/Steel | Ring | 1000 | 1 |
| NDSS-3490RV | D Head | 90 x 3.15mm | 304 S/Steel | Ring | 1000 | 1 |
| Gas Handy Pack | ||||||
| ND-3465VH | D Head | 65 x 2.87mm | Bright | Smooth | 1000 | 1 |
| ND-3475VH | D Head | 75 x 3.15mm | Bright | Smooth | 1000 | 1 |
| ND-3490VH | D Head | 90 x 3.15mm | Bright | Smooth | 1000 | 1 |
| NDHP-3450RVH | D Head | 50 x 2.87mm | Galvanised | Ring | 1000 | 1 |
| NDHP-3465RVH | D Head | 65 x 2.87mm | Galvanised | Ring | 1000 | 1 |
| NDHP-3475RVH | D Head | 75 x 3.15mm | Galvanised | Ring | 1000 | 1 |
| NDHP-3490VH | D Head | 90 x 3.15mm | Galvanised | Smooth | 1000 | 1 |
