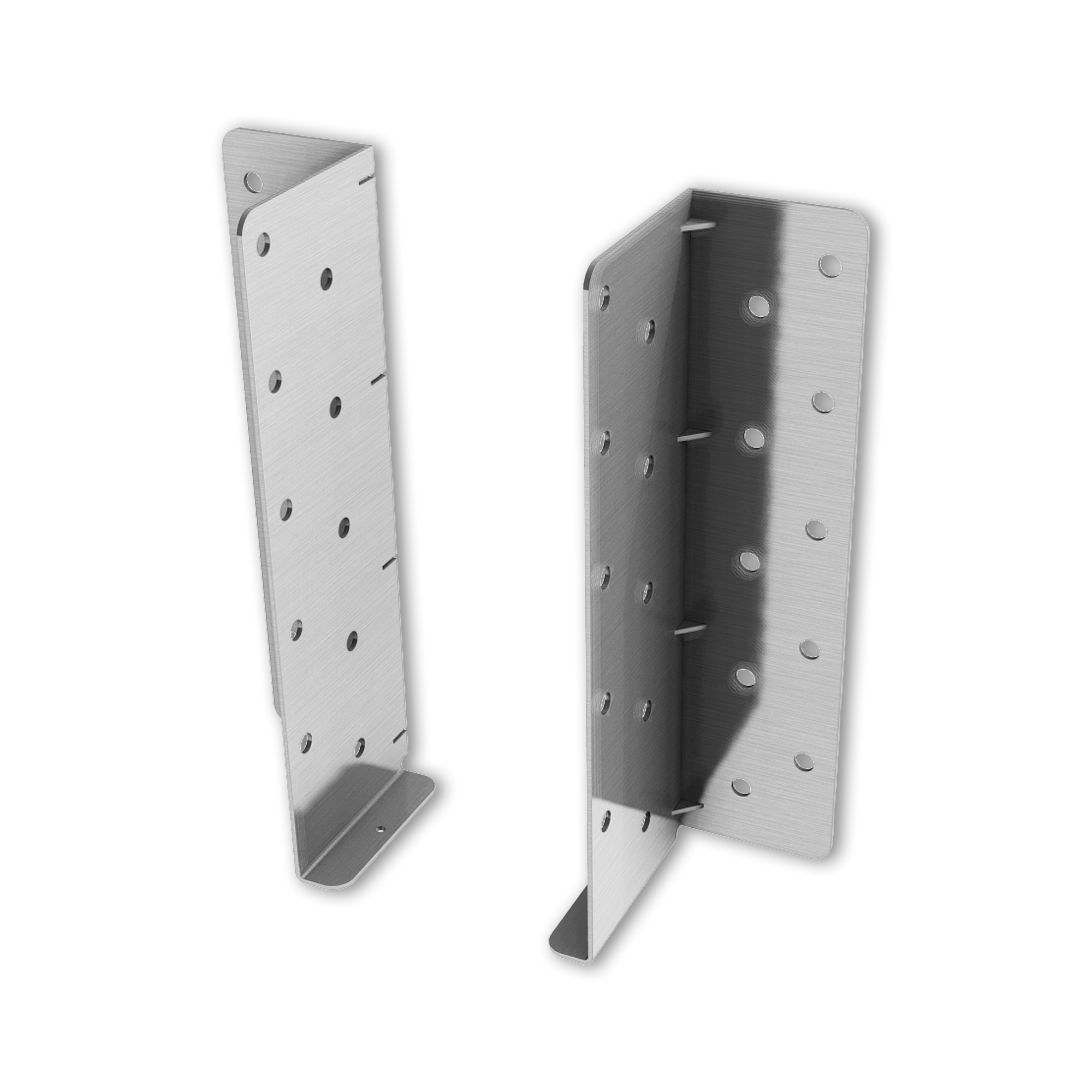

Split Hanger

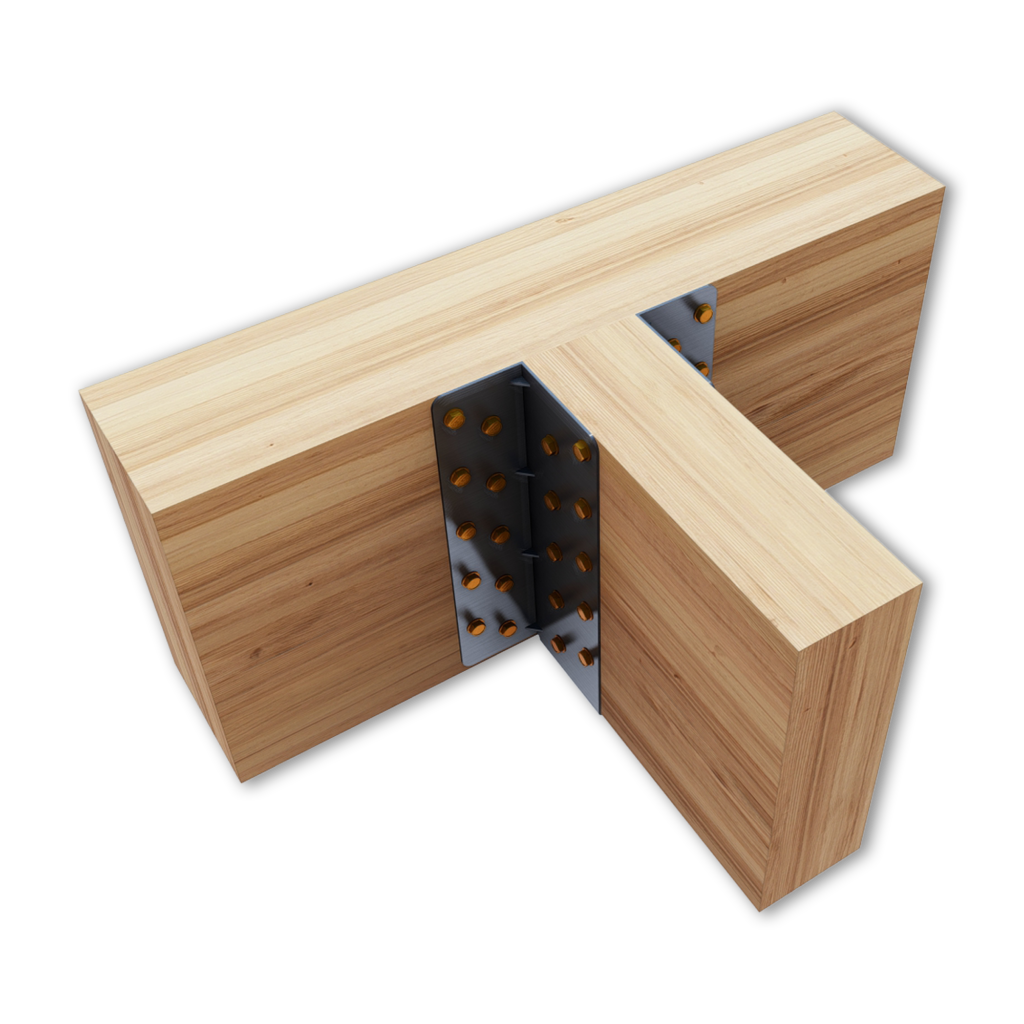

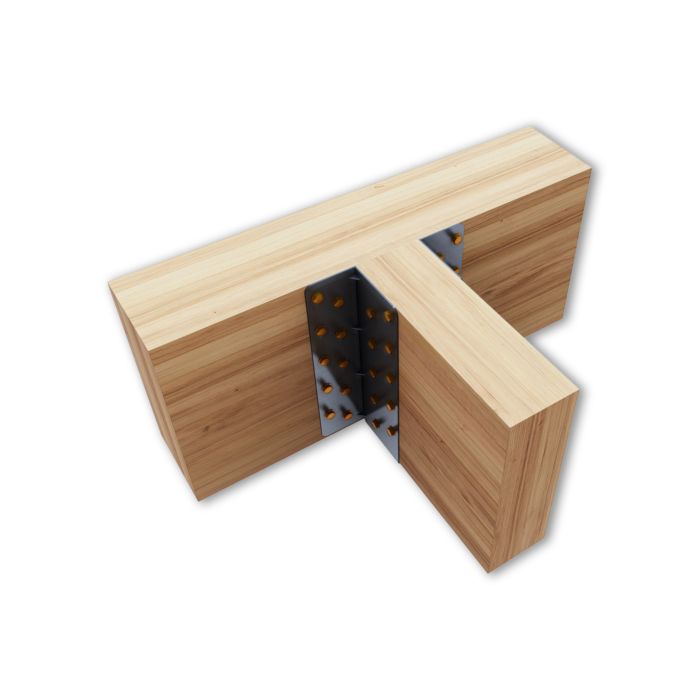

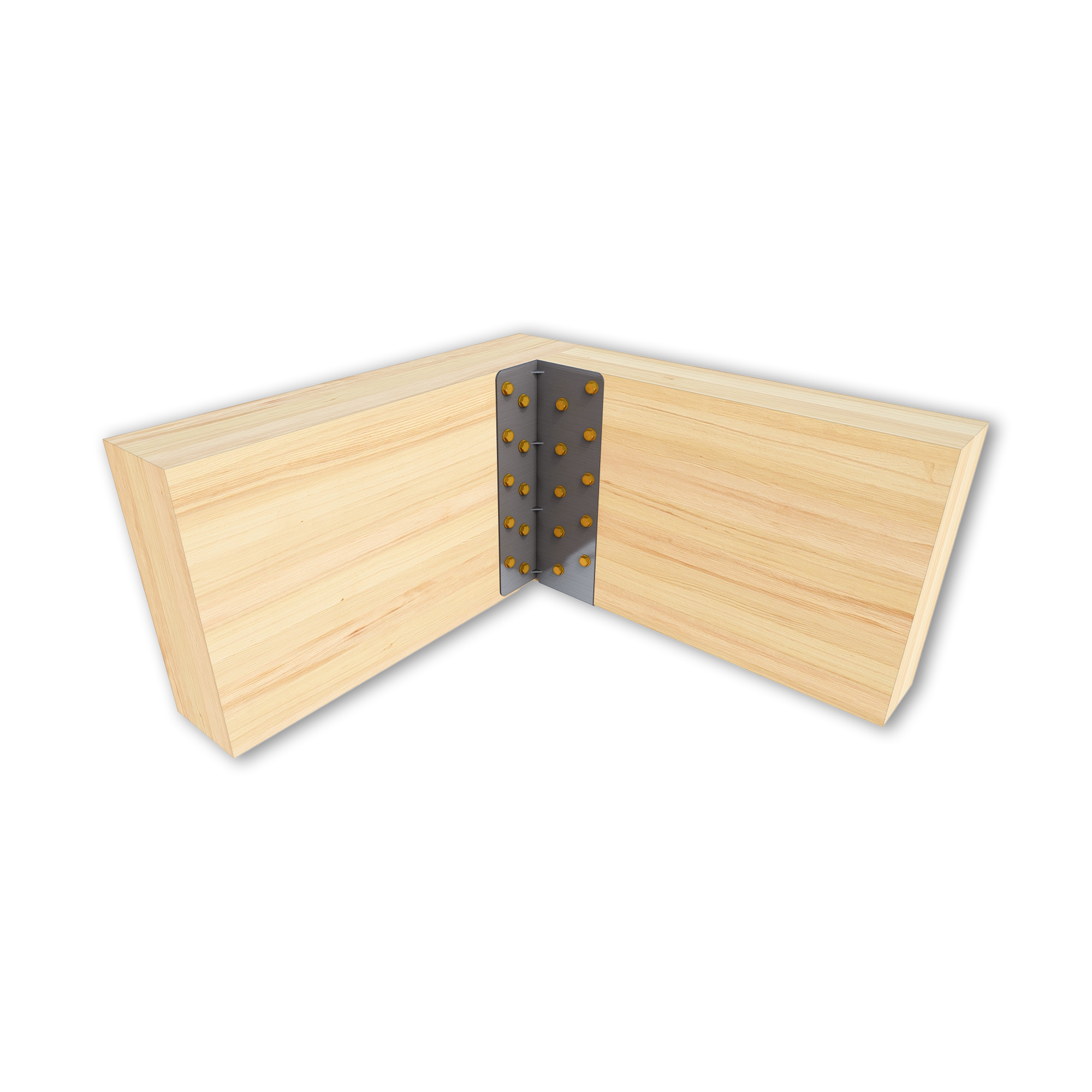

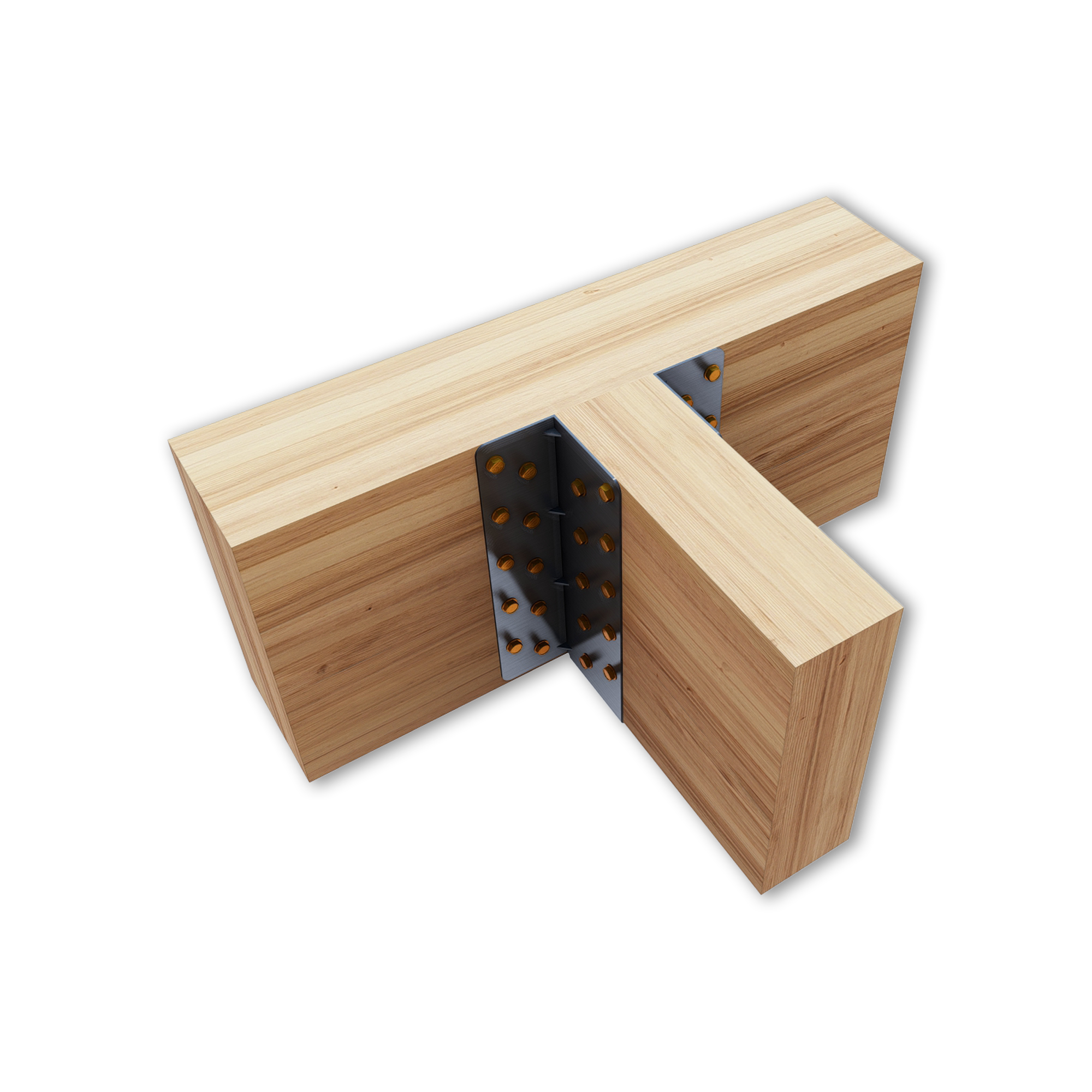

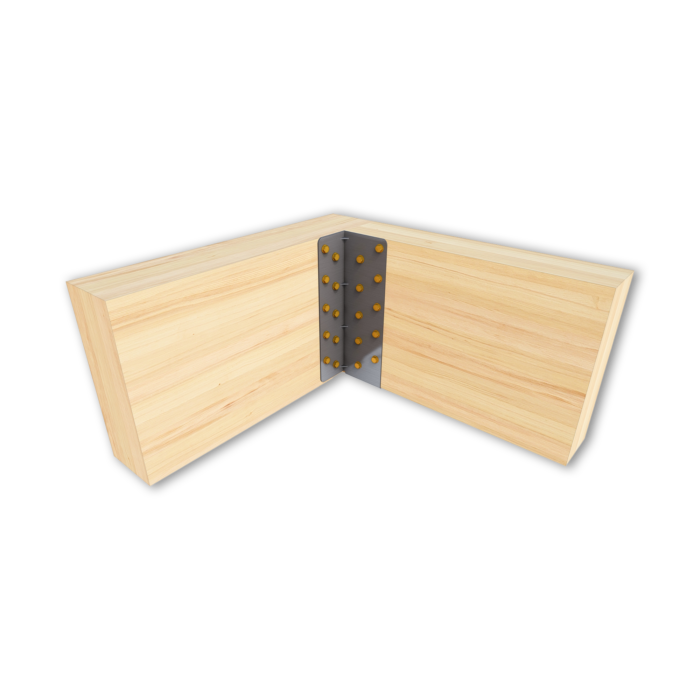

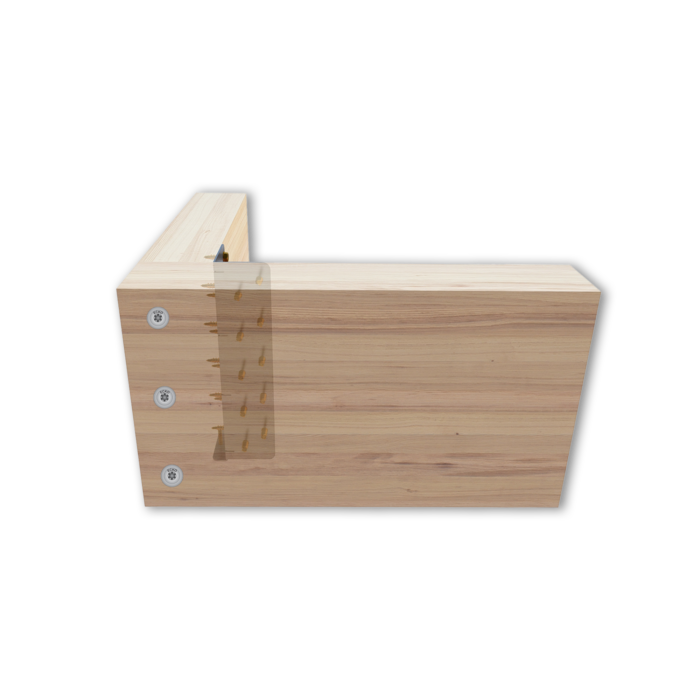

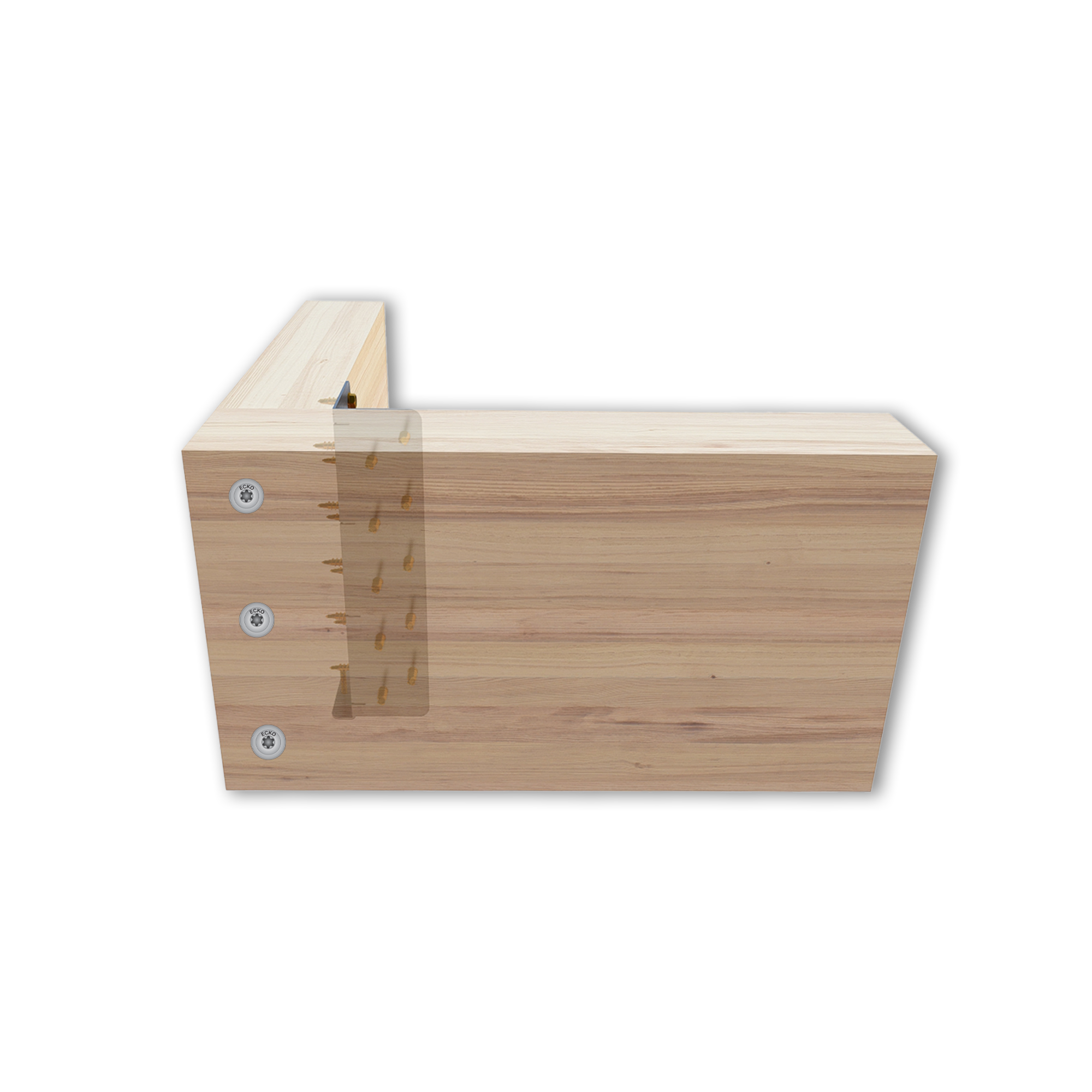

Designed to provide a strong 90 degree connection for larger timber widths and/or double joist/trusses to supporting members. The ECKO Split Hanger has been tested for use as a pair and where a single bracket is required, such as cantilevering beam to beam connections.
Product
| Product Code | Size (mm) | Finish | Description | Pair / Pack |
| BSH220-5PAIR | 220 | Z275 Galvanised Steel | 1 Pair (Left x 1, Right x 1) | 5 |

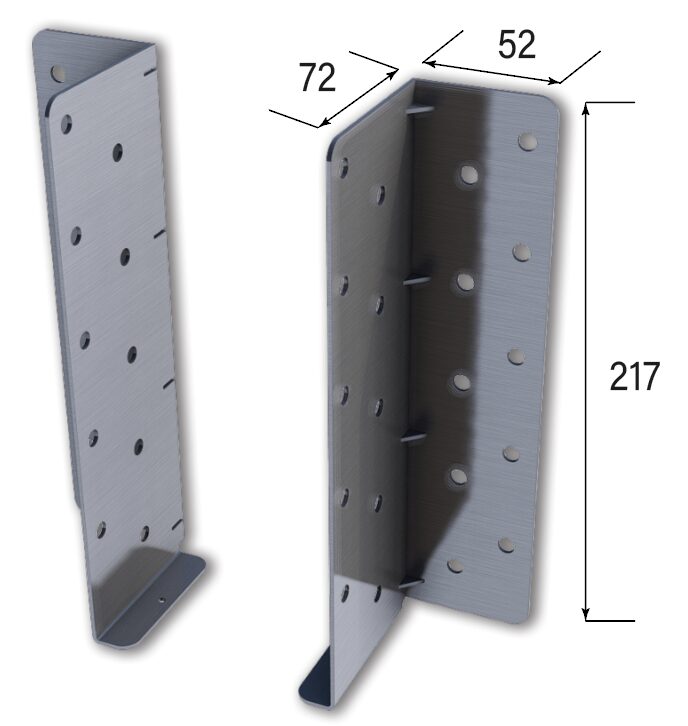

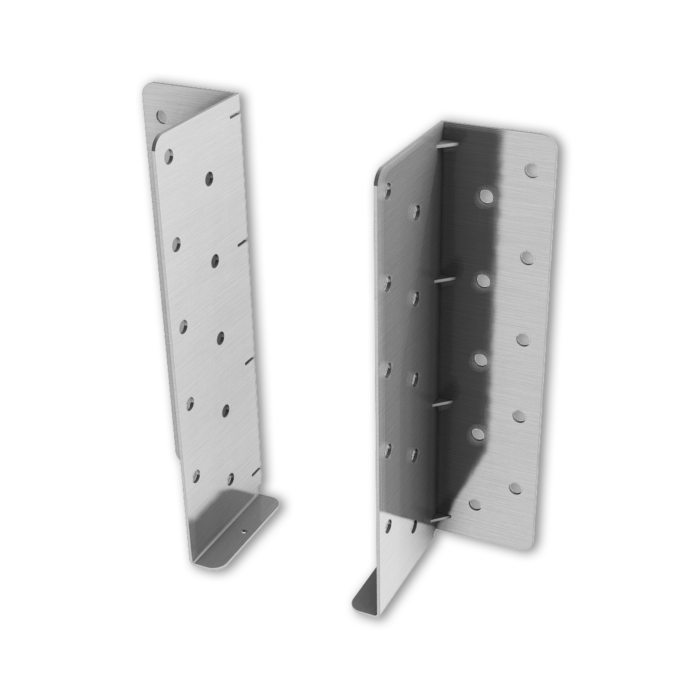

ECKO Split Hanger is made from 1.6mm G300 Z275 galvanised (internal use) steel to ensure it meets all requirements set out in NZS3604:2011 and have been BRANZ Tested to ensure structural performance.

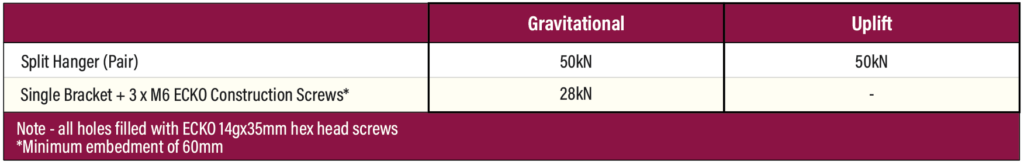

Characteristic Loads
Materials:
1.6mm G300 Z275 Galvanised Steel
Technical
