Concealed Purlin Cleat (CPC)

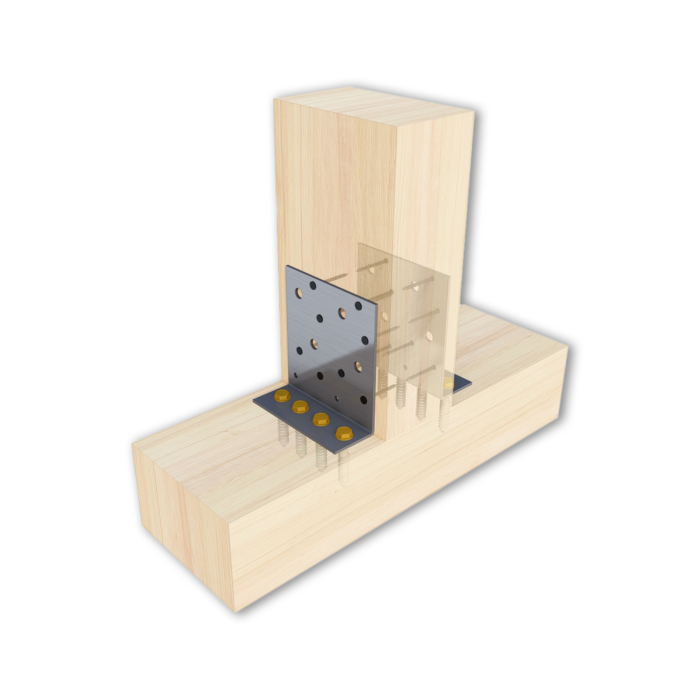

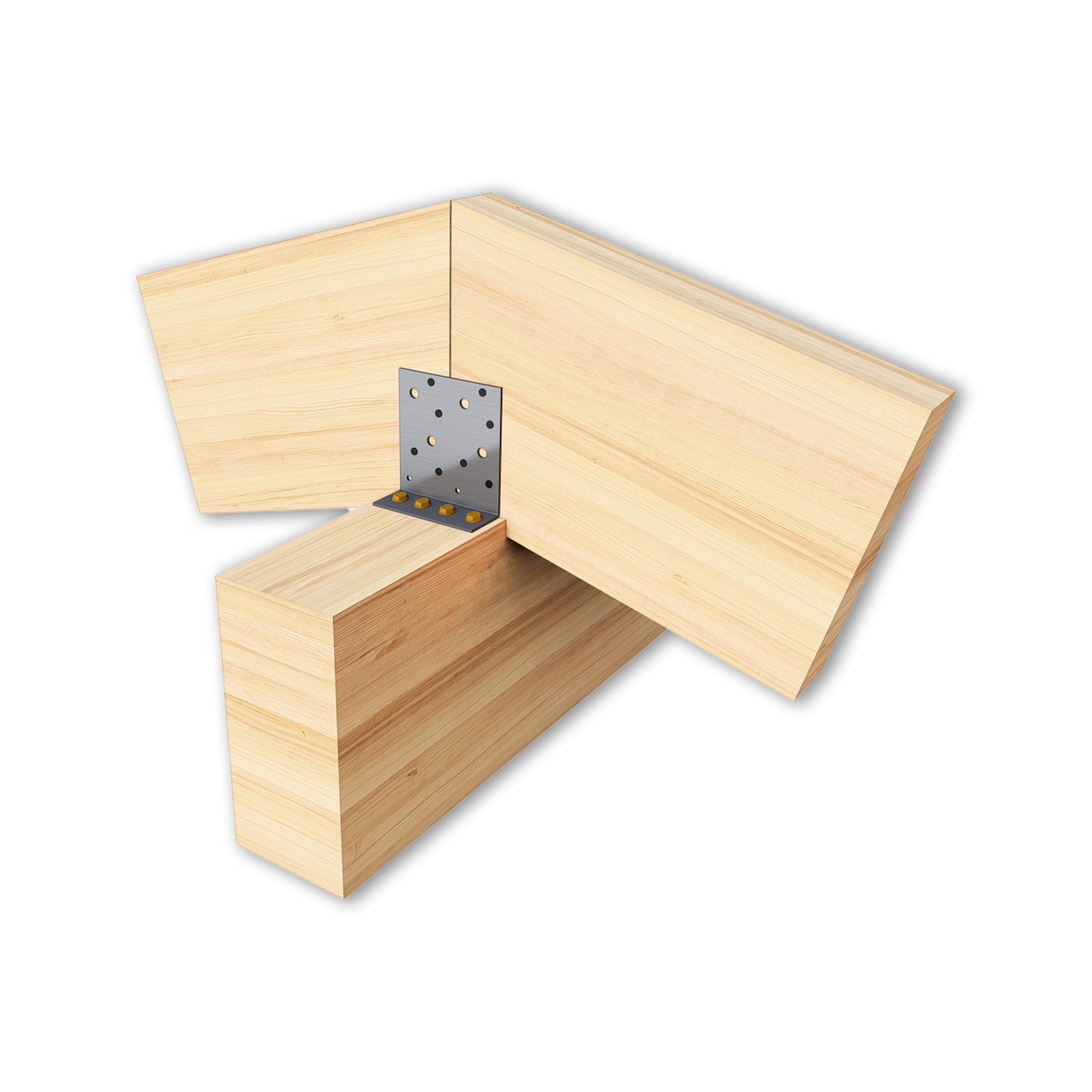

ECKO Concealed Purlin Cleats (CPC) provide an economical rigid connection frequently used to secure trusses/rafters
to beams and wall plates
Product

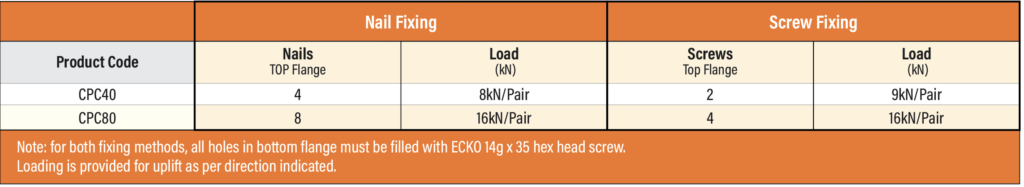

| Nail Fixing | Screw Fixing | |||||
| Product Code | Size (mm) | Finish | Nails (Top Flange) | Load (kN) | Screws (Top Flange) | Load (kN) |

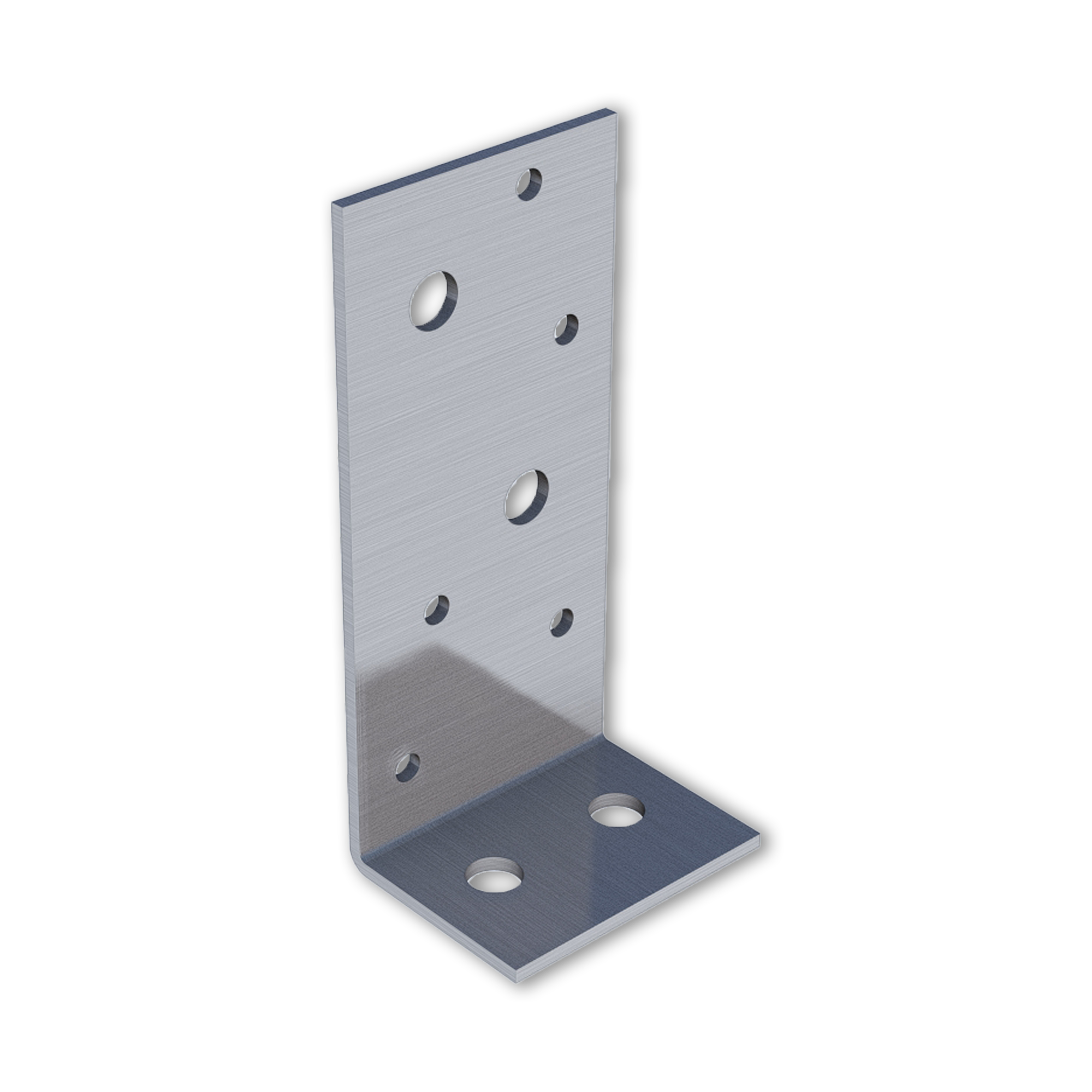

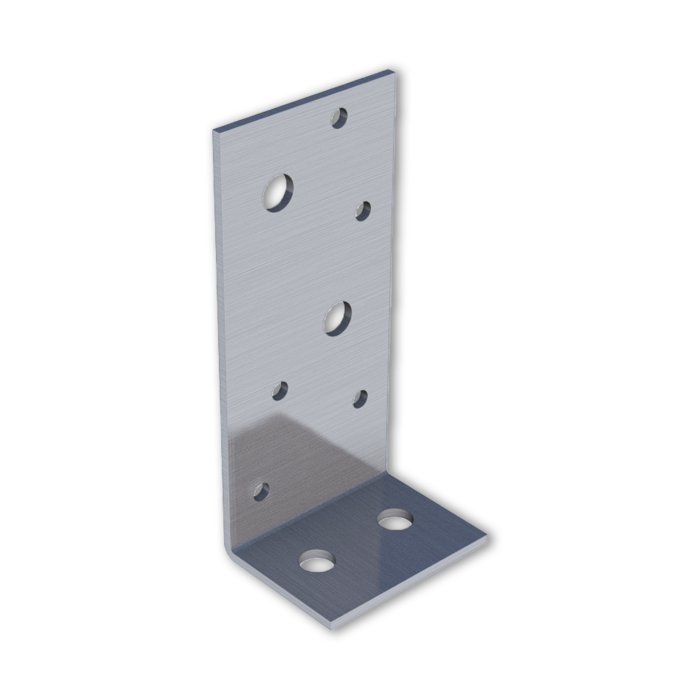

| BCPC40-100 | 40 | Z275 Galvanised Steel | 4 | 8kN/Pair | 2 | 9kN/Pair |

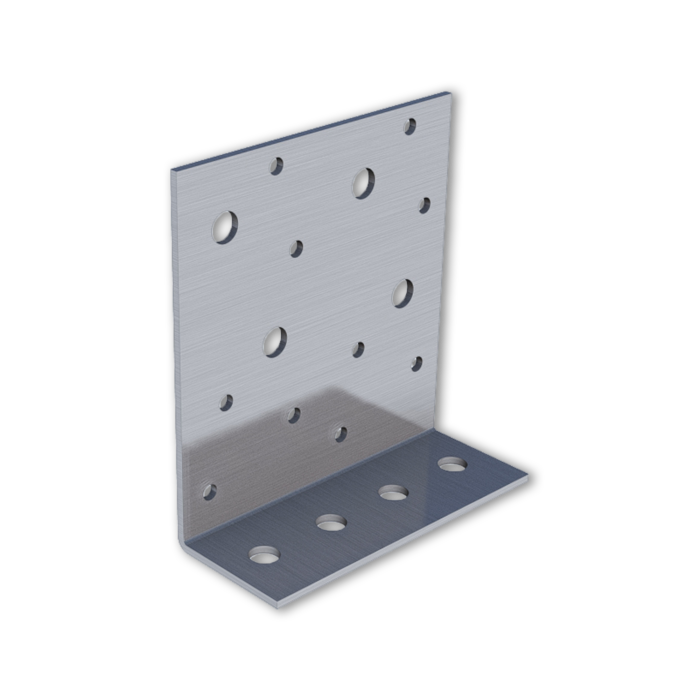

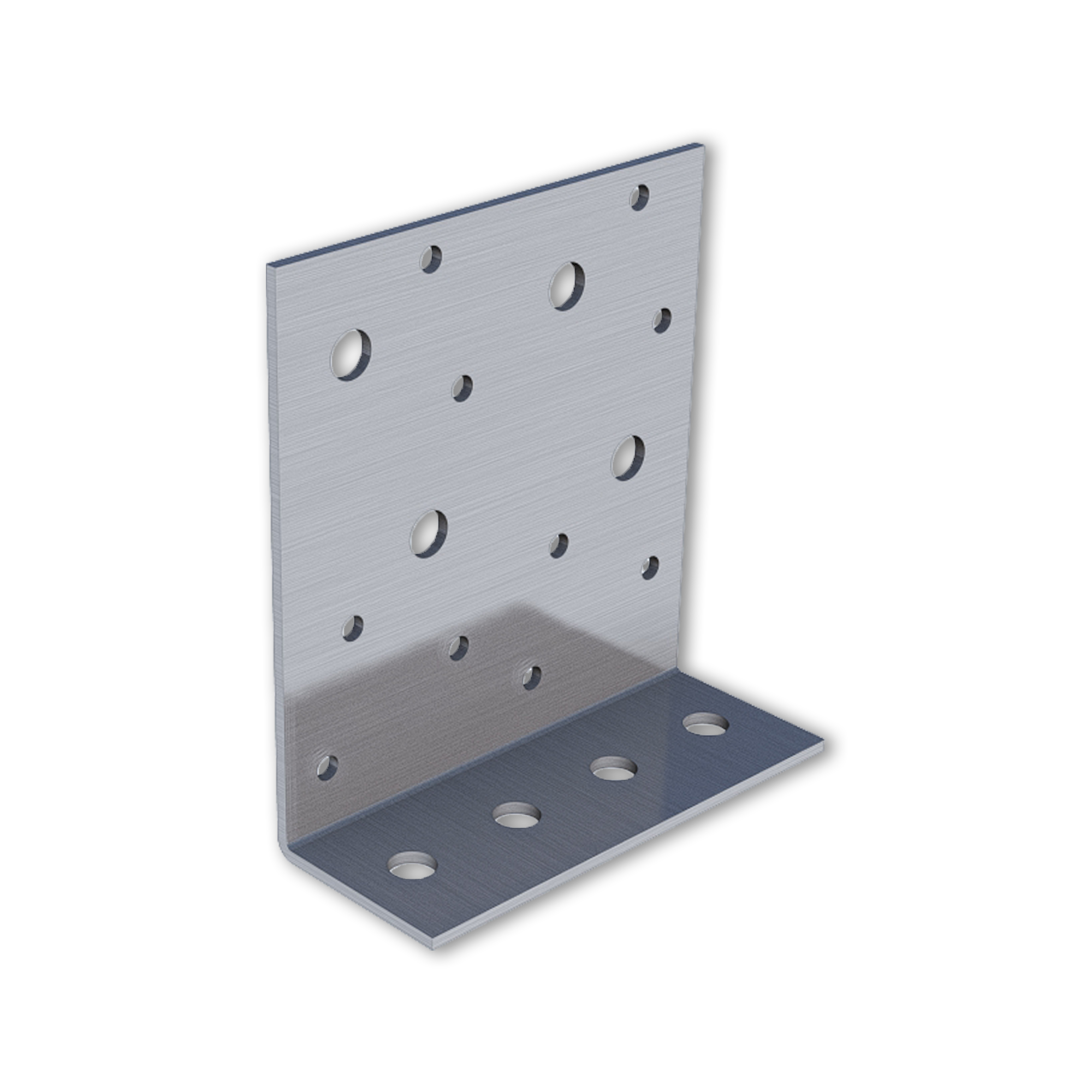

| BCPC80-100 | 80 | Z275 Galvanised Steel | 8 | 16kN/Pair | 4 | 16kN/Pair |
| BCPC40SS-50 | 40 | 304 Stainless Steel | 4 | 8kN/Pair | 2 | 9kN/Pair |
| BCPC80SS-50 | 80 | 304 Stainless Steel | 8 | 16kN/Pair | 4 | 16kN/Pair |
| Product Code | Size (mm) | Description | Kit / Bag | |

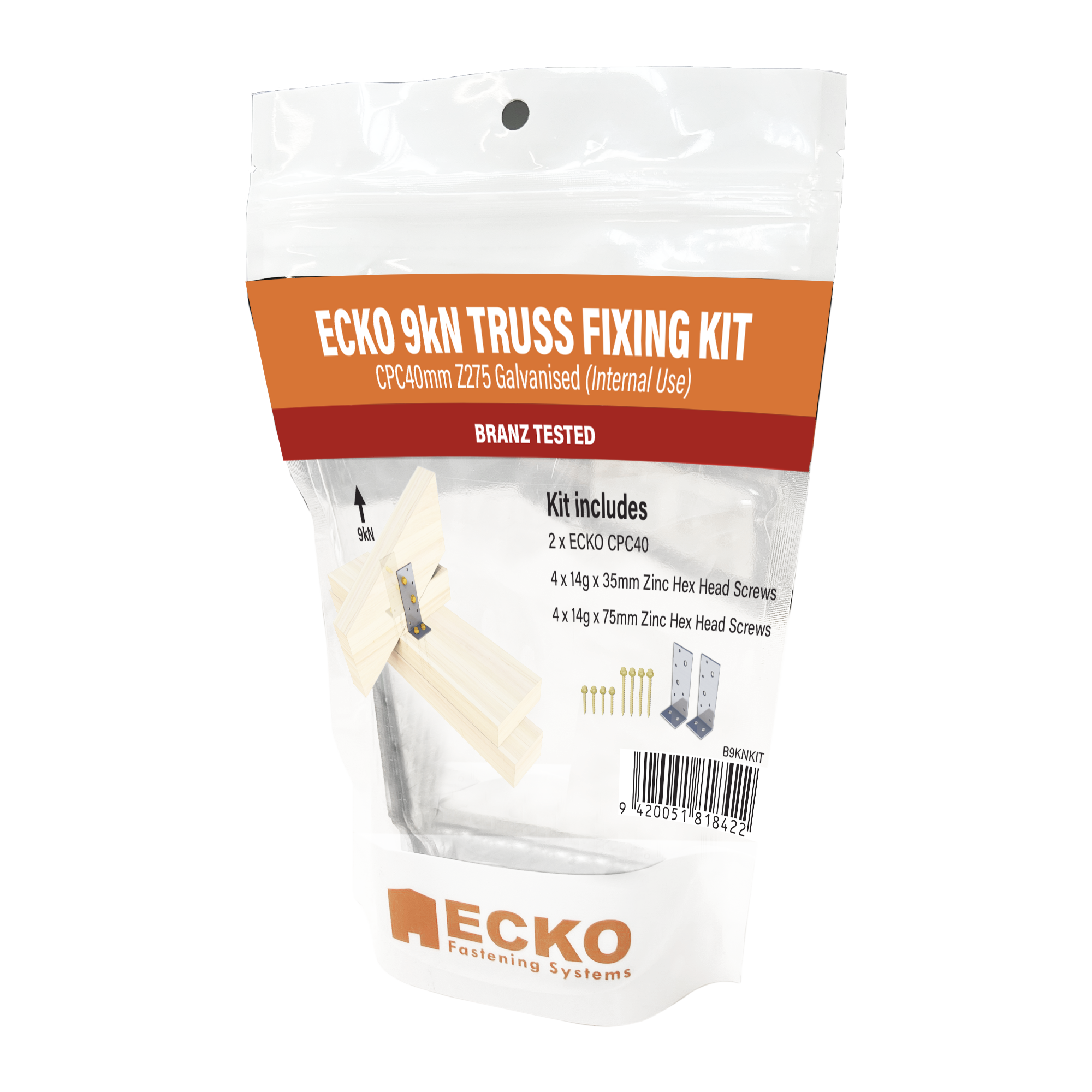

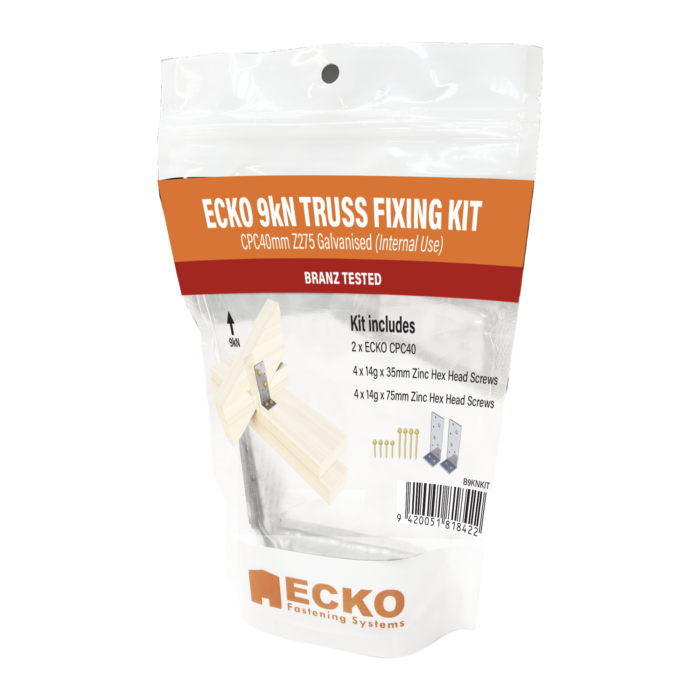

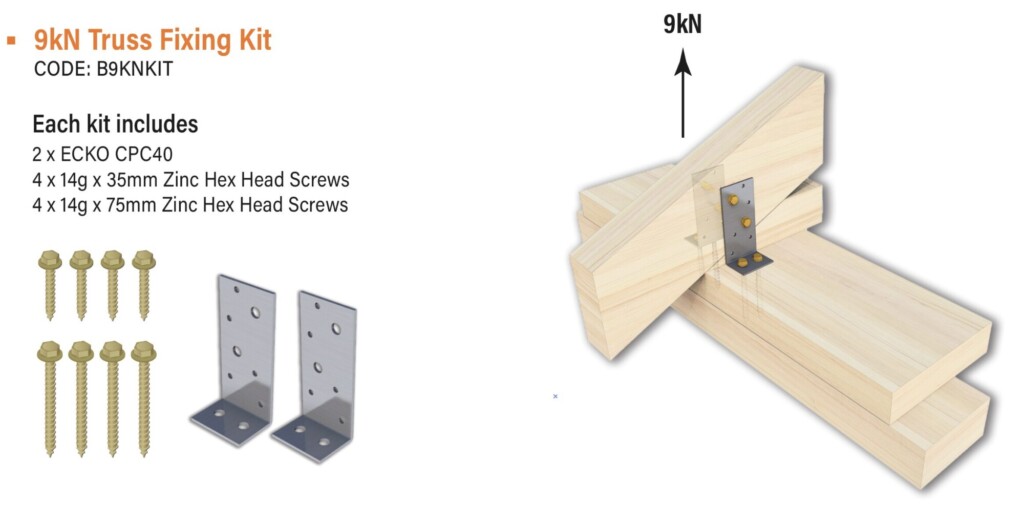

| 9kN Truss Fixing Kit | B9KNKIT | 40 | 2 x ECKO CPC40, 4 x 14g x 35mm Zinc Hex Head Screws, 4 x 14g x 75mm Zinc Hex Head Screws | 1 |

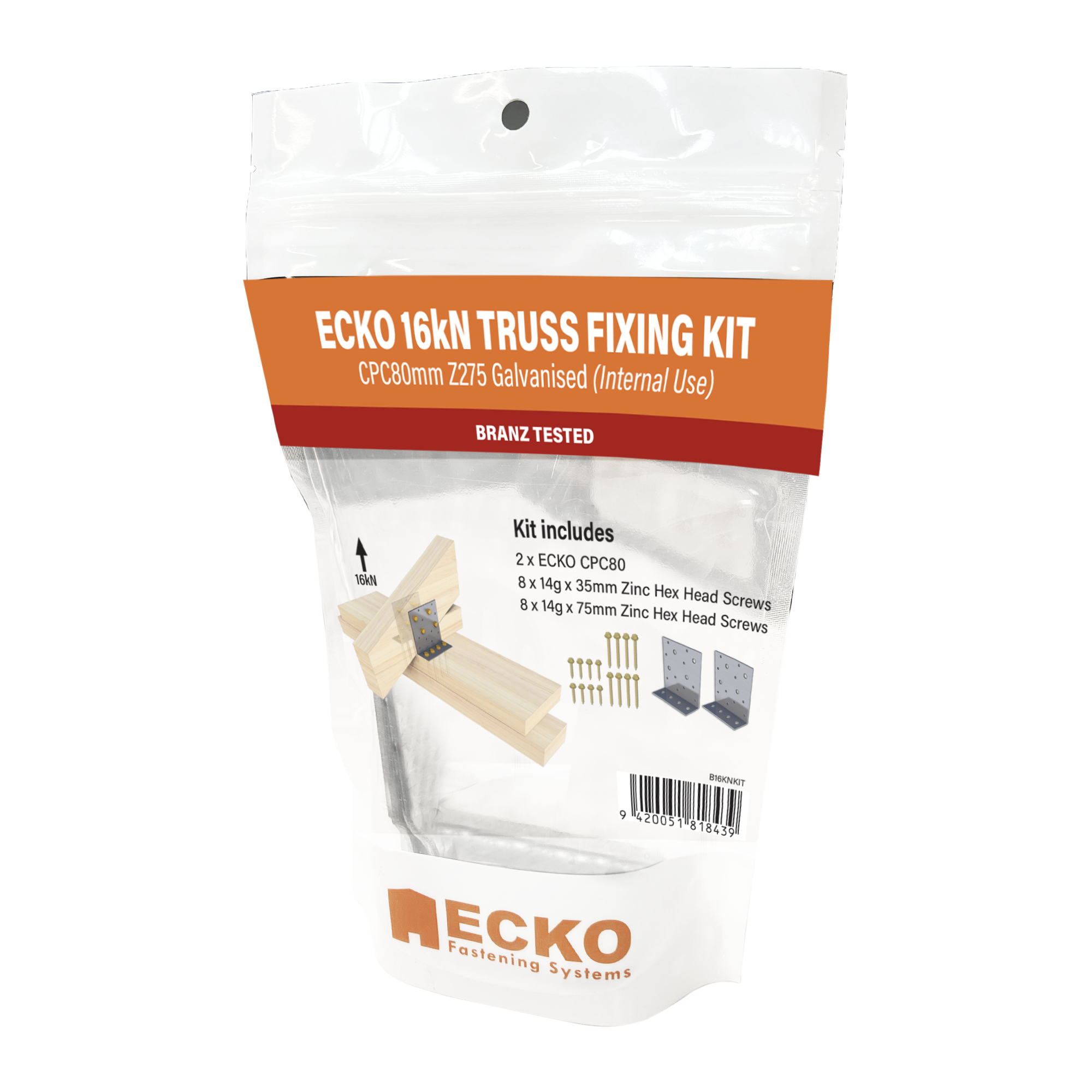

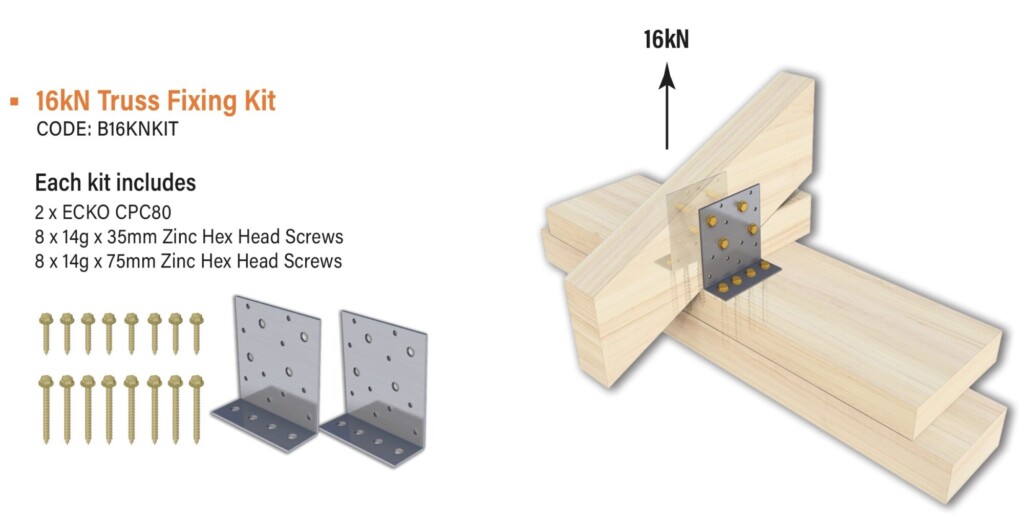

| 16kN Truss Fixing Kit | B16KNKIT | 80 | 2 x ECKO CPC80, 8 x 14g x 35mm Zinc Hex Head Screws, 8 x 14g x 75mm Zinc Hex Head Screws | 1 |
Characteristic Values have been derived from testing conducted by BRANZ(ST-18222) in accordance with EM1 as specified in NZ3604:2011

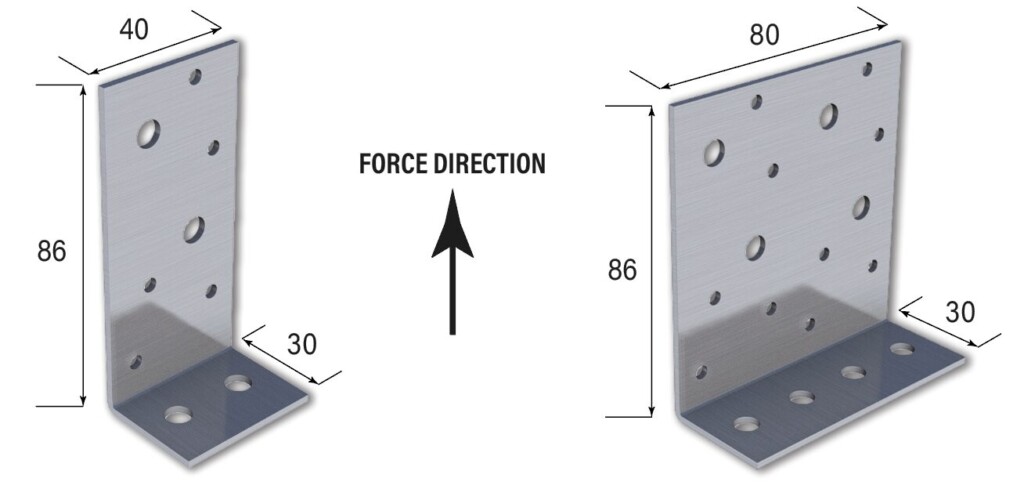

Materials:
2.0mm G300 Z275 Galvanised Steel
2.00mm 304 Stainless Steel

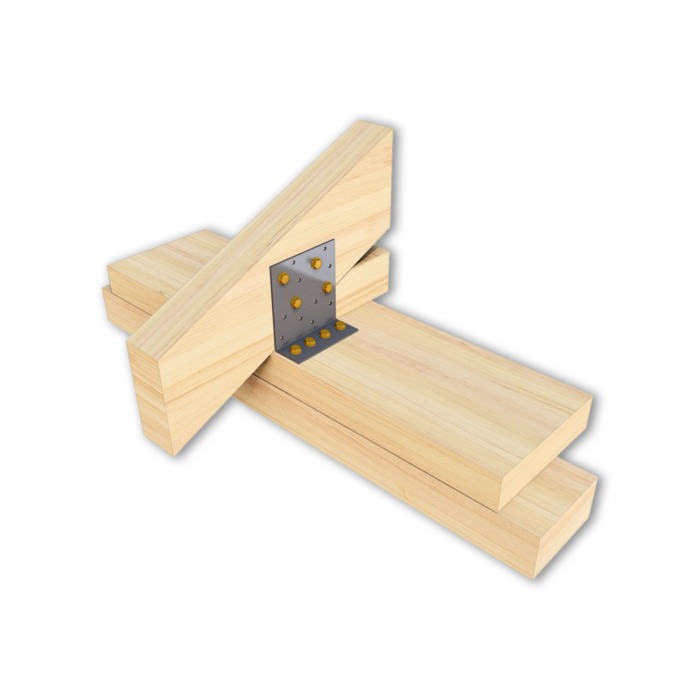

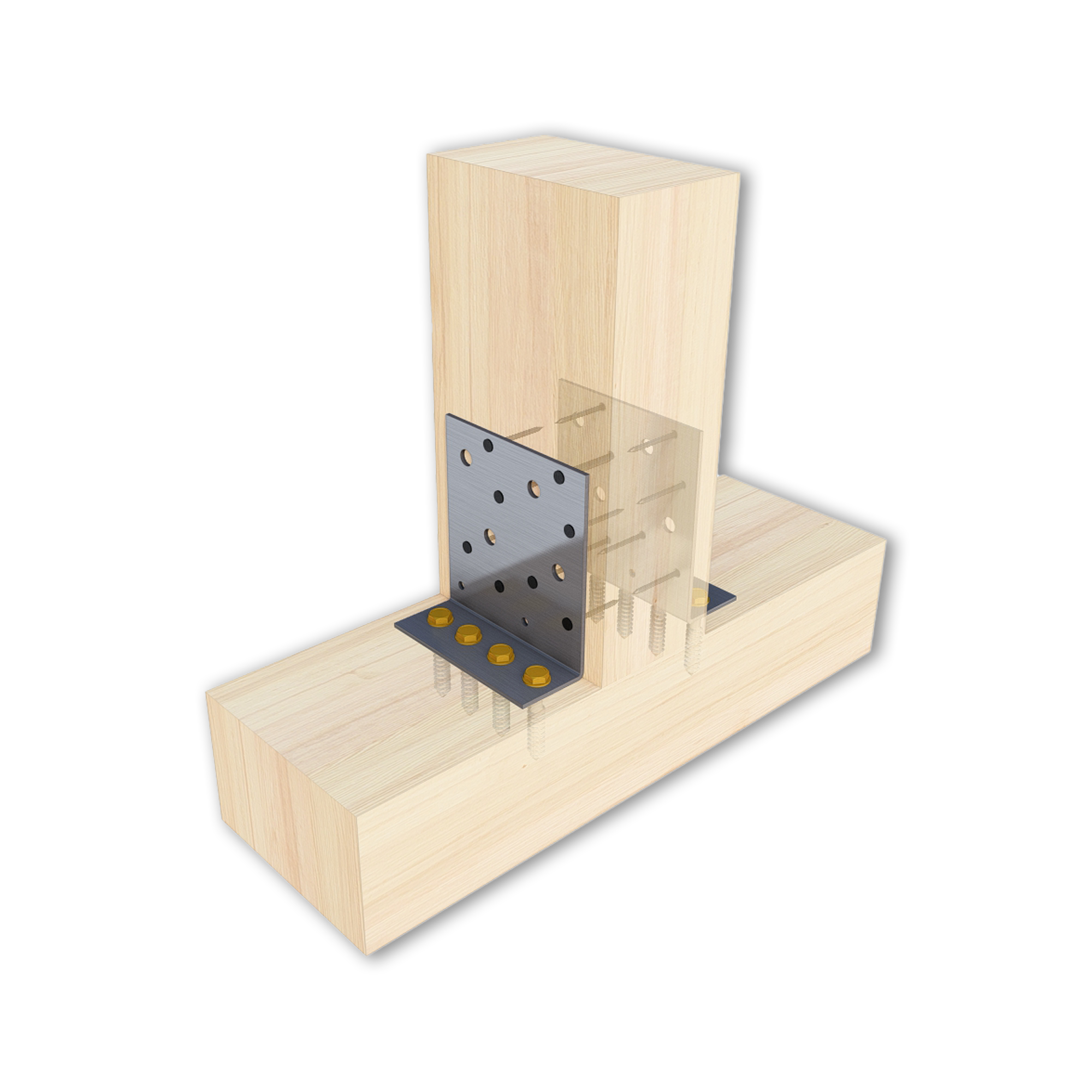

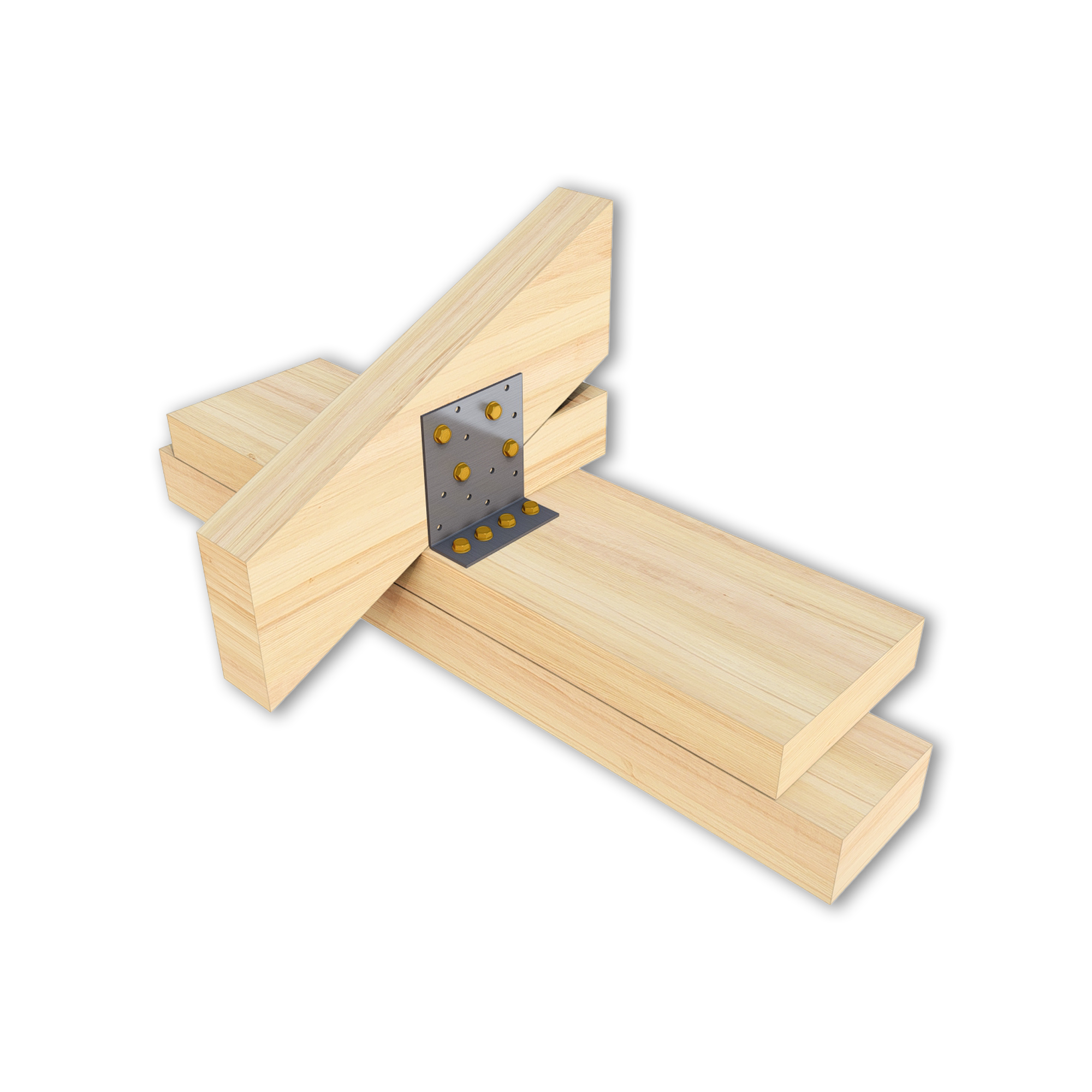

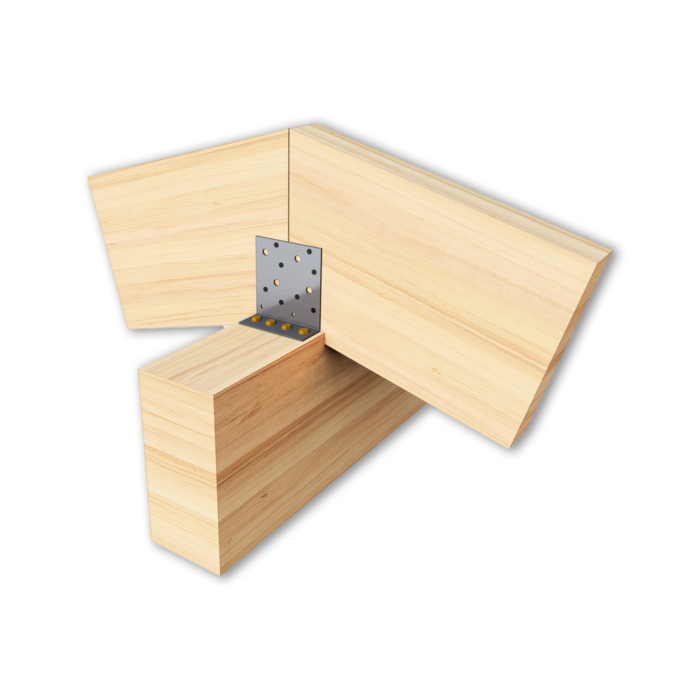

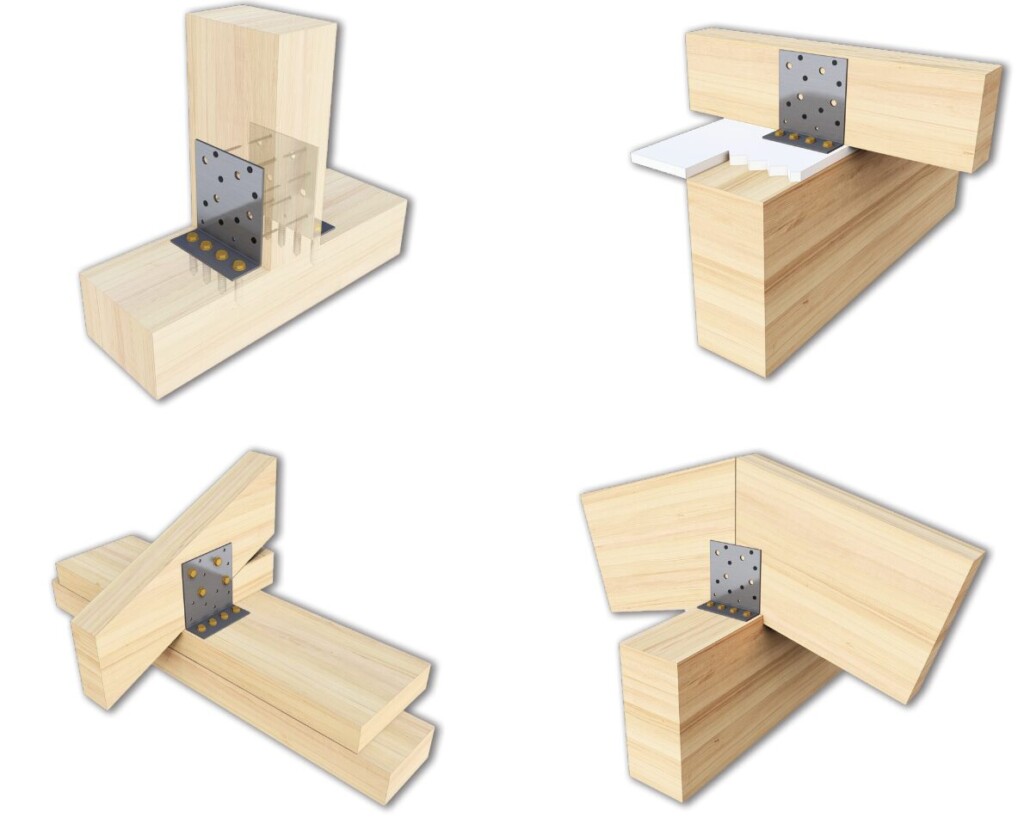

- Commonly Used Scenarios

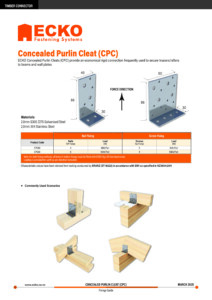

Concealed Purlin Cleat (CPC) Truss Fixings Guide

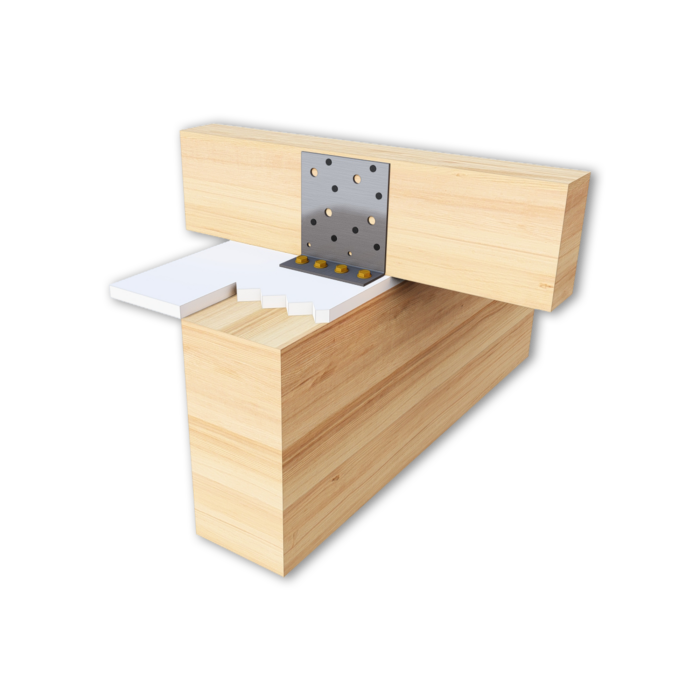

ECKO CPC’s have been BRANZ tested and comply with NZS3604:2011 for fixing required for uplift of rafters, roof trusses, under purlins and ridge beams (for given loads). ECKO provide convenient truss fixing kits for both 9kN and 16kN, that include all required fixings.
