6kN & 12kN Pile Fixing Kit

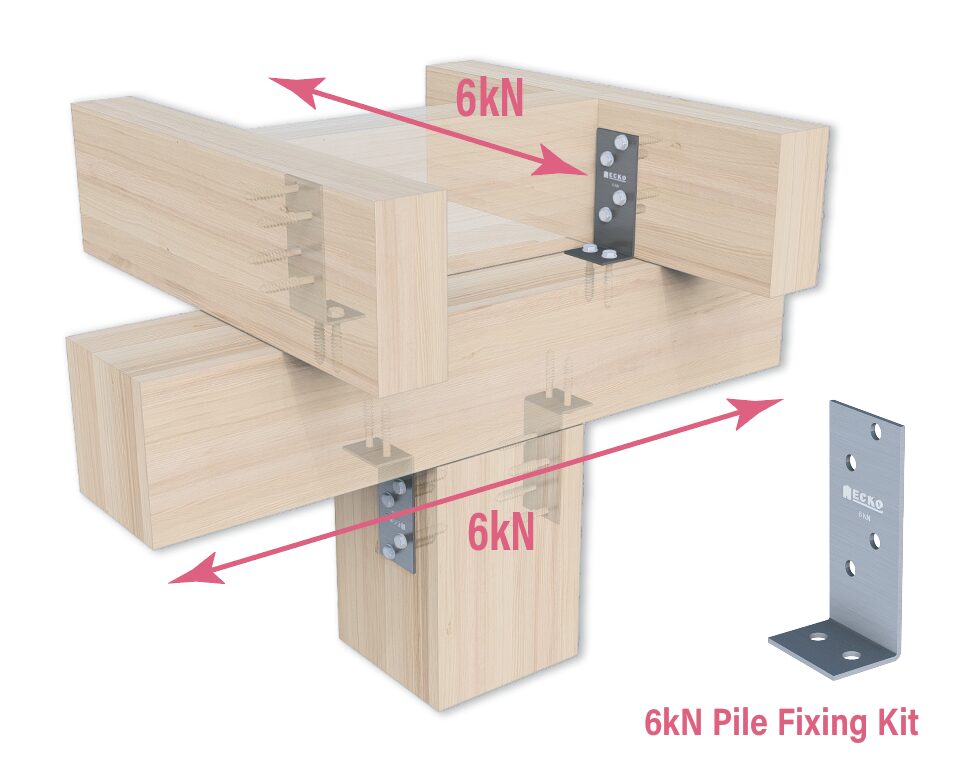

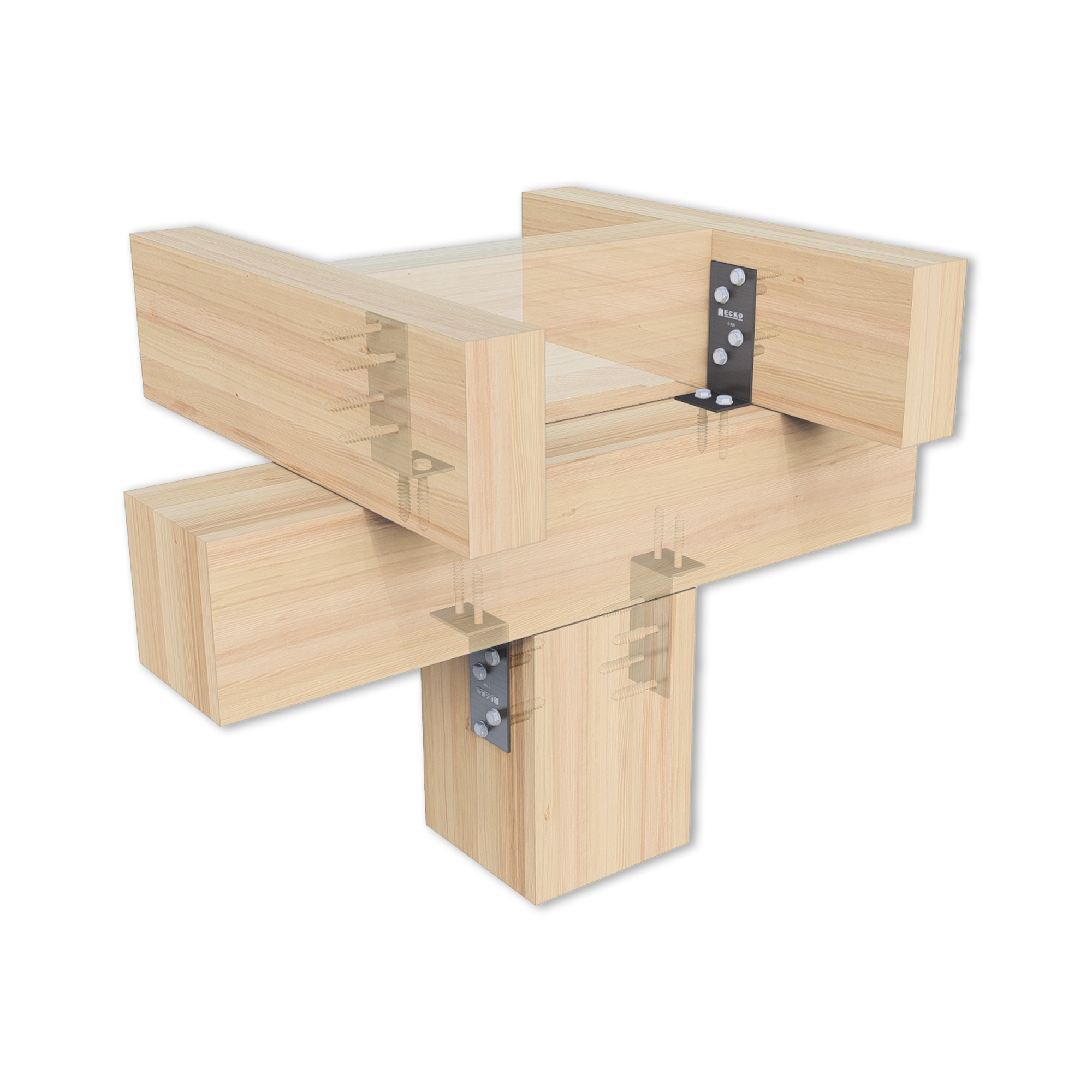

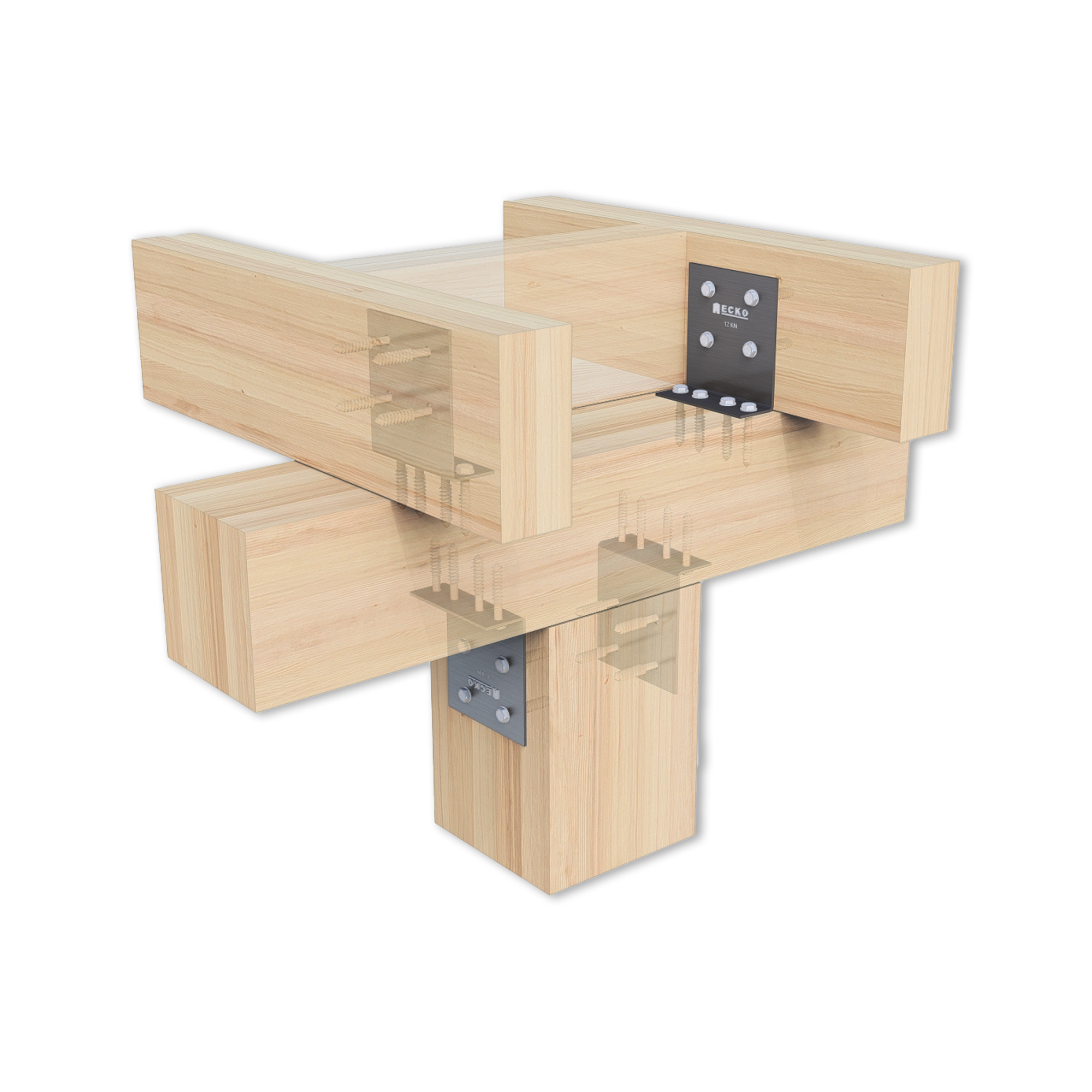

ECKO 6kN Pile Fixing is designed and tested to adhere to NZS3604:2011 requirements for cantilever pile connections (pile-to-bearer and bearer-to-joist). While the 12kN Pile Fixing Kit is for braced and anchor pile fixing (pile-to-bearer and bearer-to-joist), both are available in 304 Stainless Steel for outdoor and sea spray zone use. All packs are supplied complete with the necessary fasteners for installation.
Product
| Product Code | Description | Kit / Bag | |

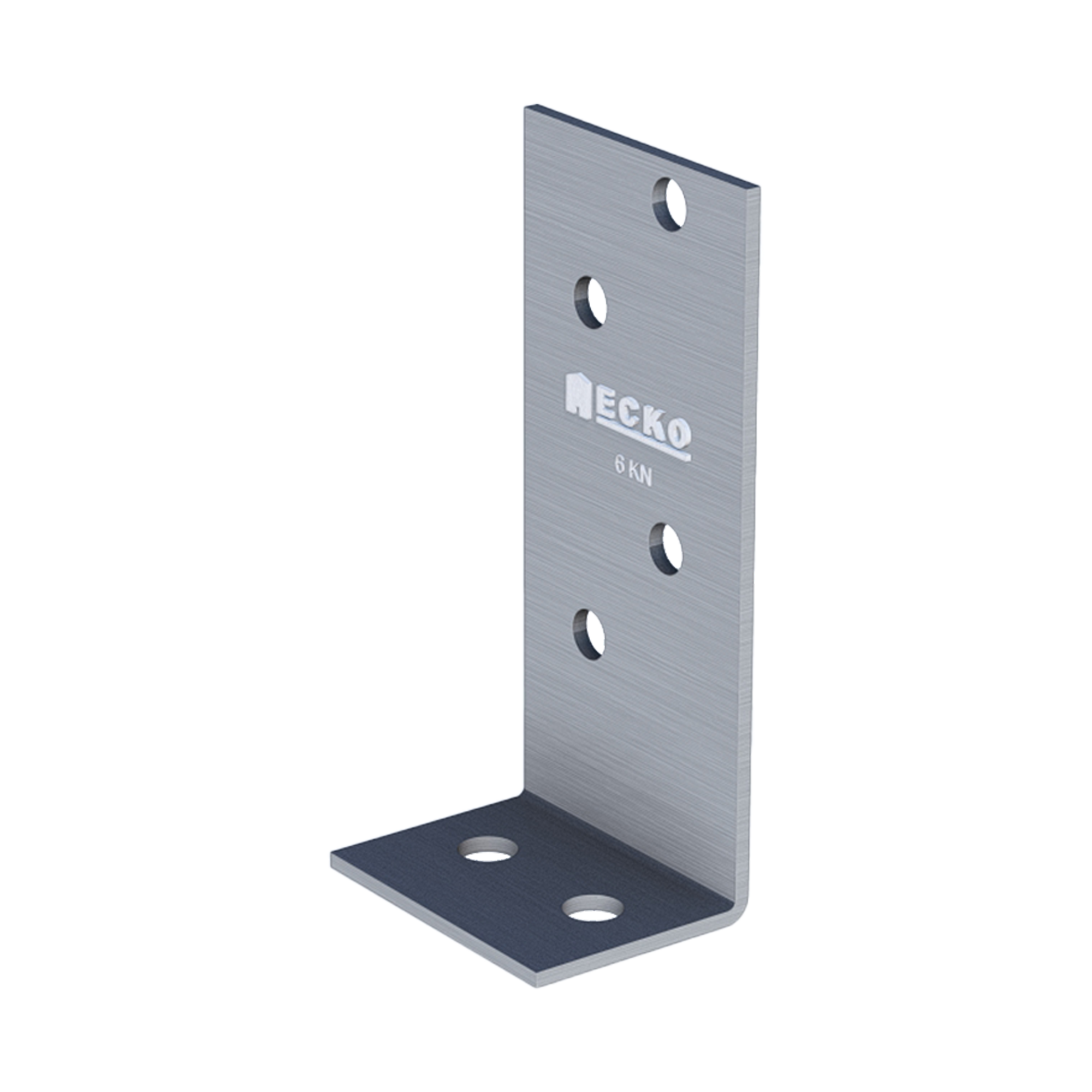

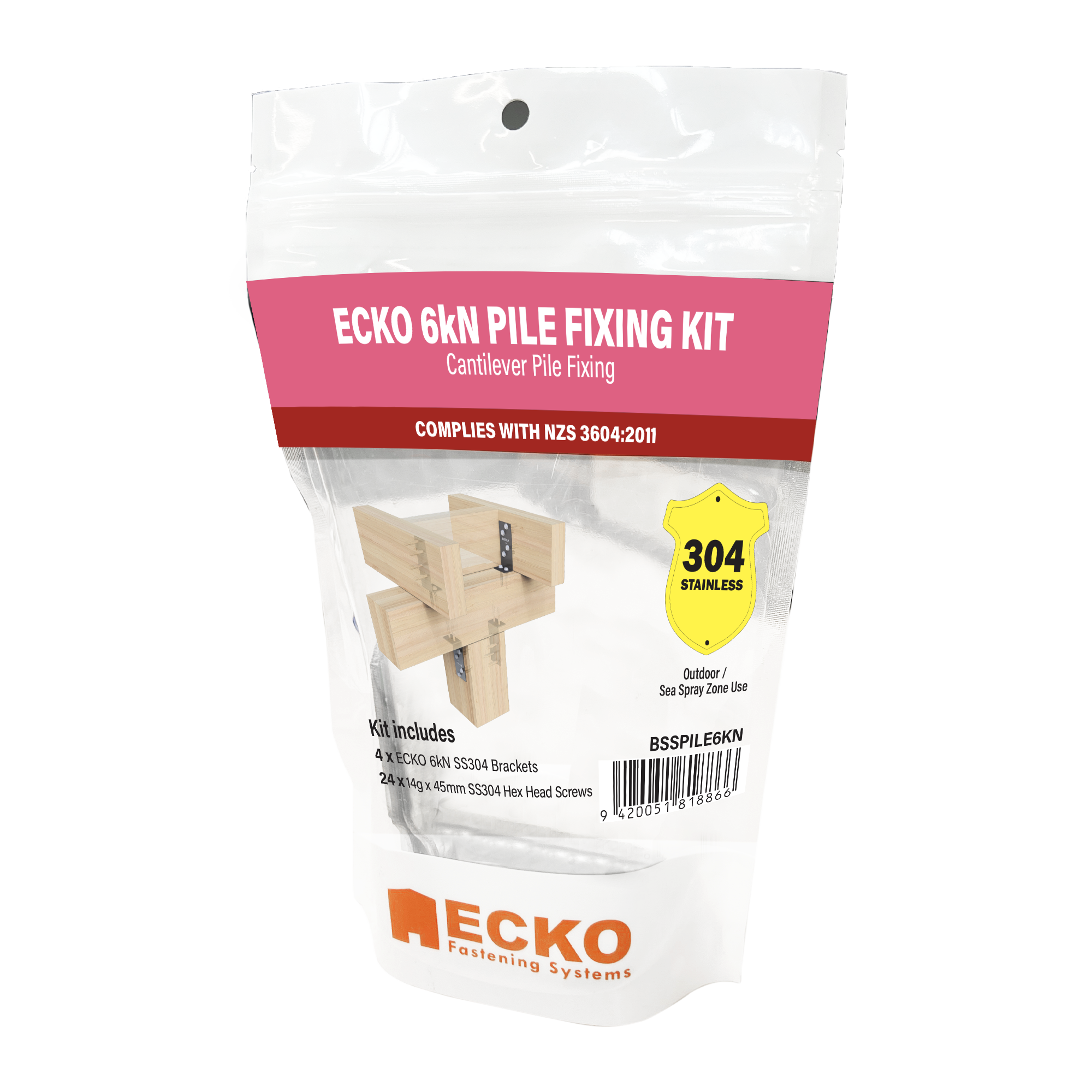

| 6kN Pile Fixing Kit | BSSPILE6KN | 4 x ECKO 6kN 304 Stainless Steel Brackets 24 x 14g x 45mm 304 Stainless Steel Hex Head Screws | 1 |

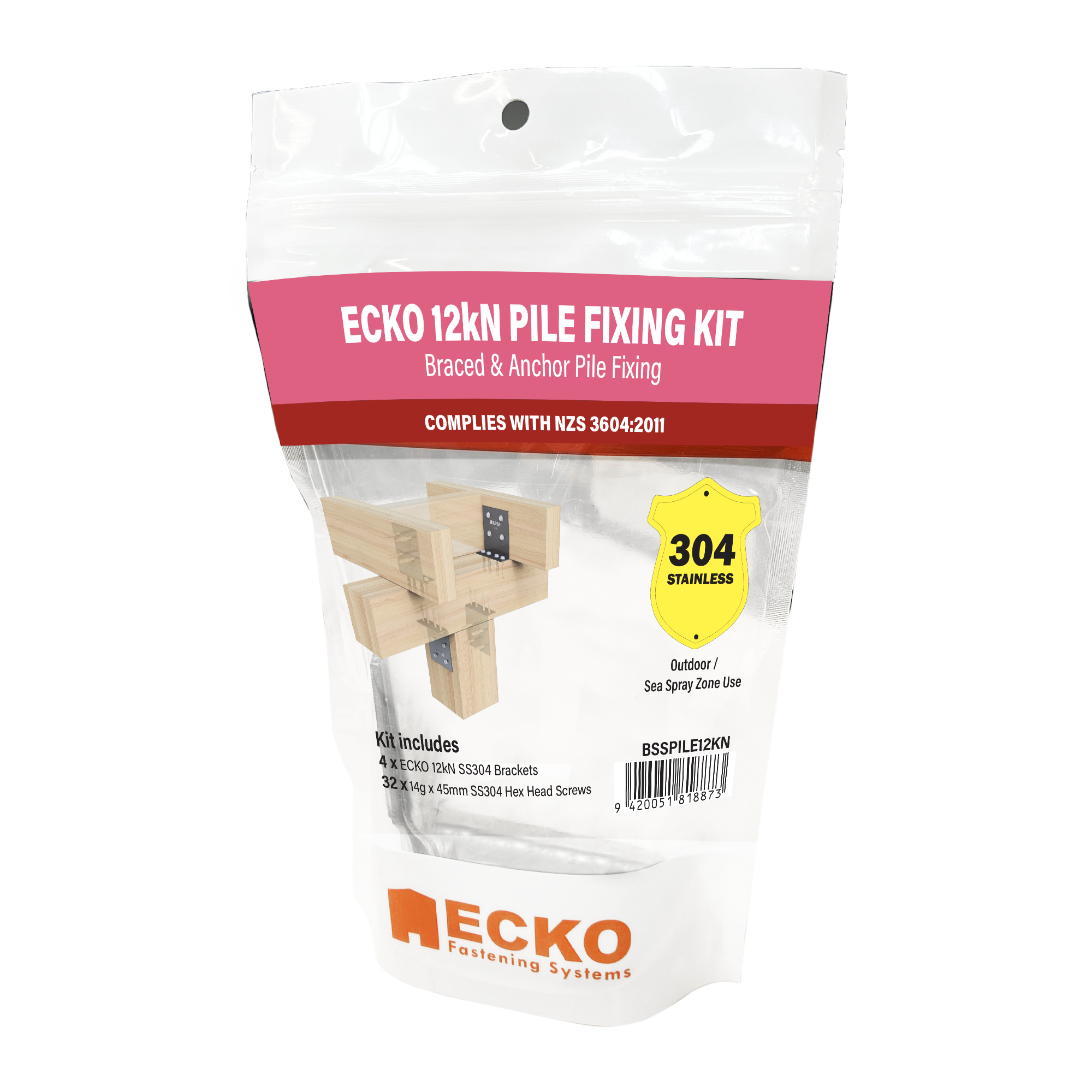

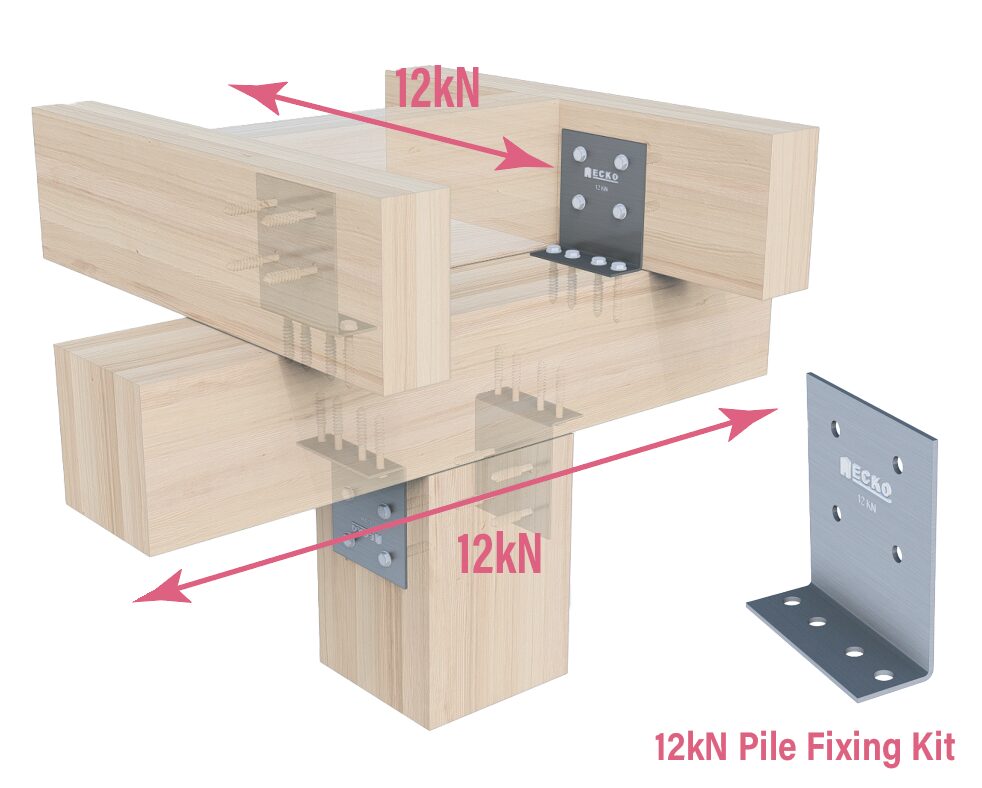

| 12kN Pile Fixing Kit | BSSPILE12KN | 4 x ECKO 12kN 304 Stainless Steel Brackets 32 x 14g x 45mm 304 Stainless Steel Hex Head Screws | 1 |
Key Feature:
- All screw fixed, ensuring easy and fast installation
- No need to shave pile to fit bearer
- All components are made from 304 Stainless Steel, suitable for high corrosion environments
Note:
- All construction must be in line with NZS3604:2011 and fixings set out in this document

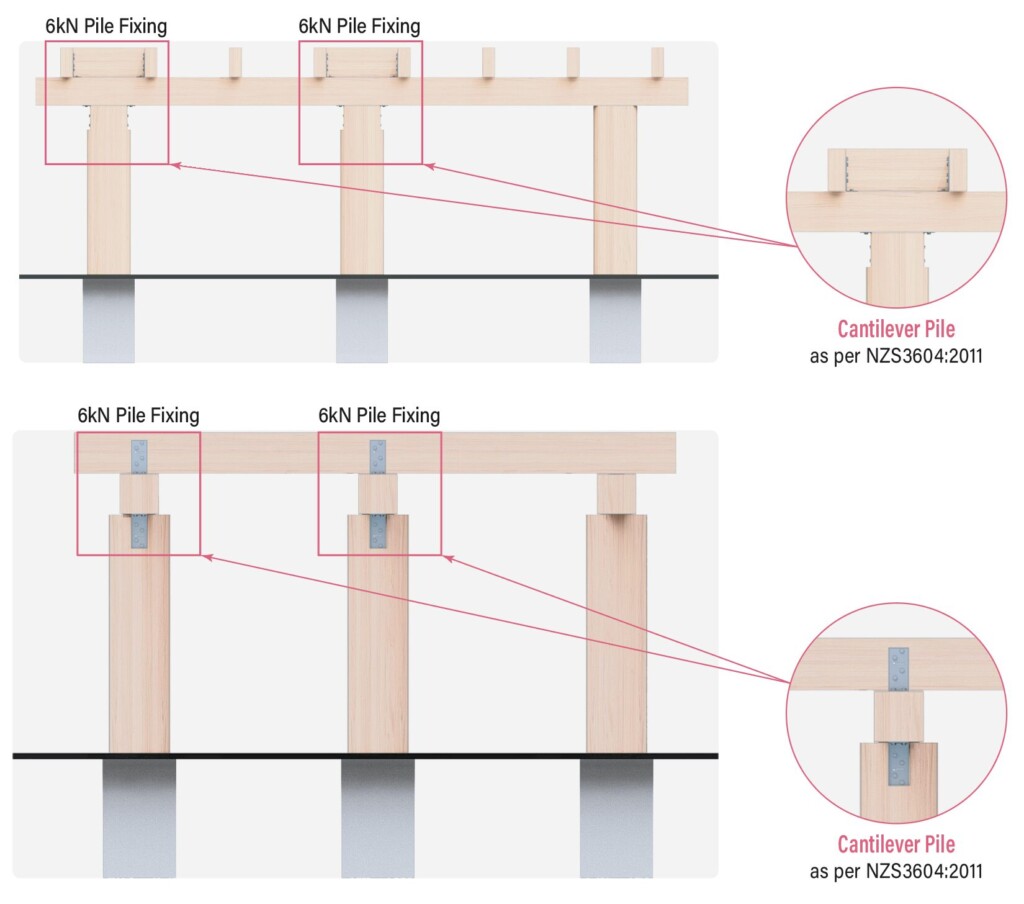

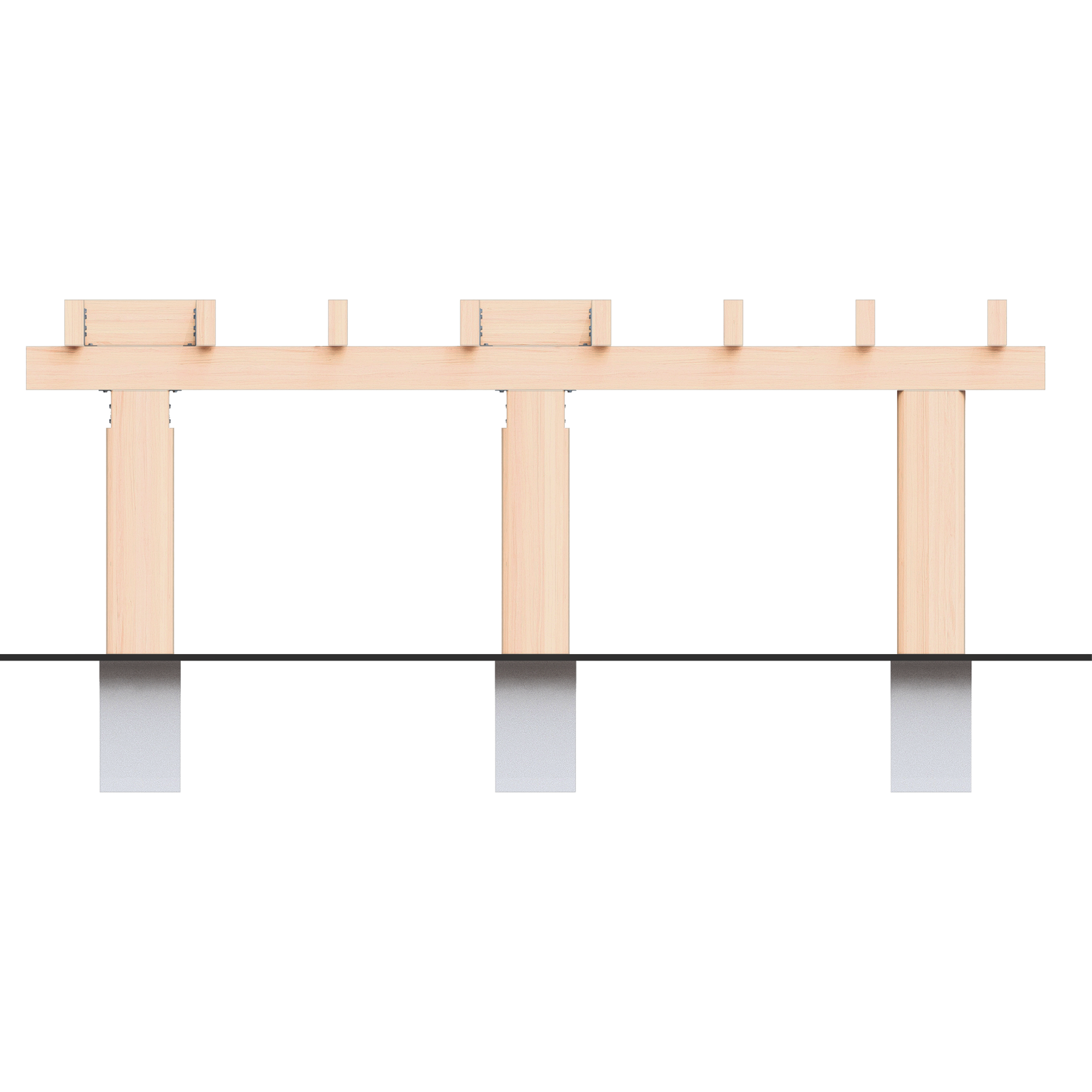

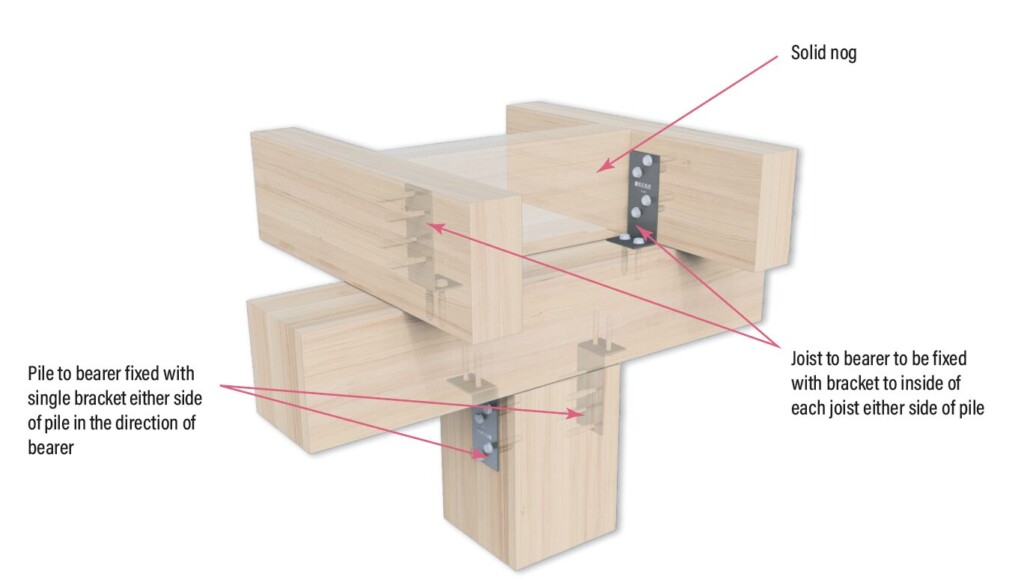

- Solid blocking is required directly over cantilever pile Lateral support to floor joists must be within 300mm of bearer or bracing lines (NZS3604)
- Round piles must be checked out to ensure bracket sits flush with pile
- Joists must be a minimum of 140mm Where possible bearer to be centrally located on pile
- Minimum pile size: 125 x 125mm square, 140mm round
- All bracket holes to be filled
Key Feature:
- All screw fixed, ensuring easy and fast installation
- No need to shave pile to fit bearer
- All components are made from 304 Stainless Steel, suitable for high corrosion environments
Note:
- All construction must be in line with NZS3604:2011 and fixings set out in this document

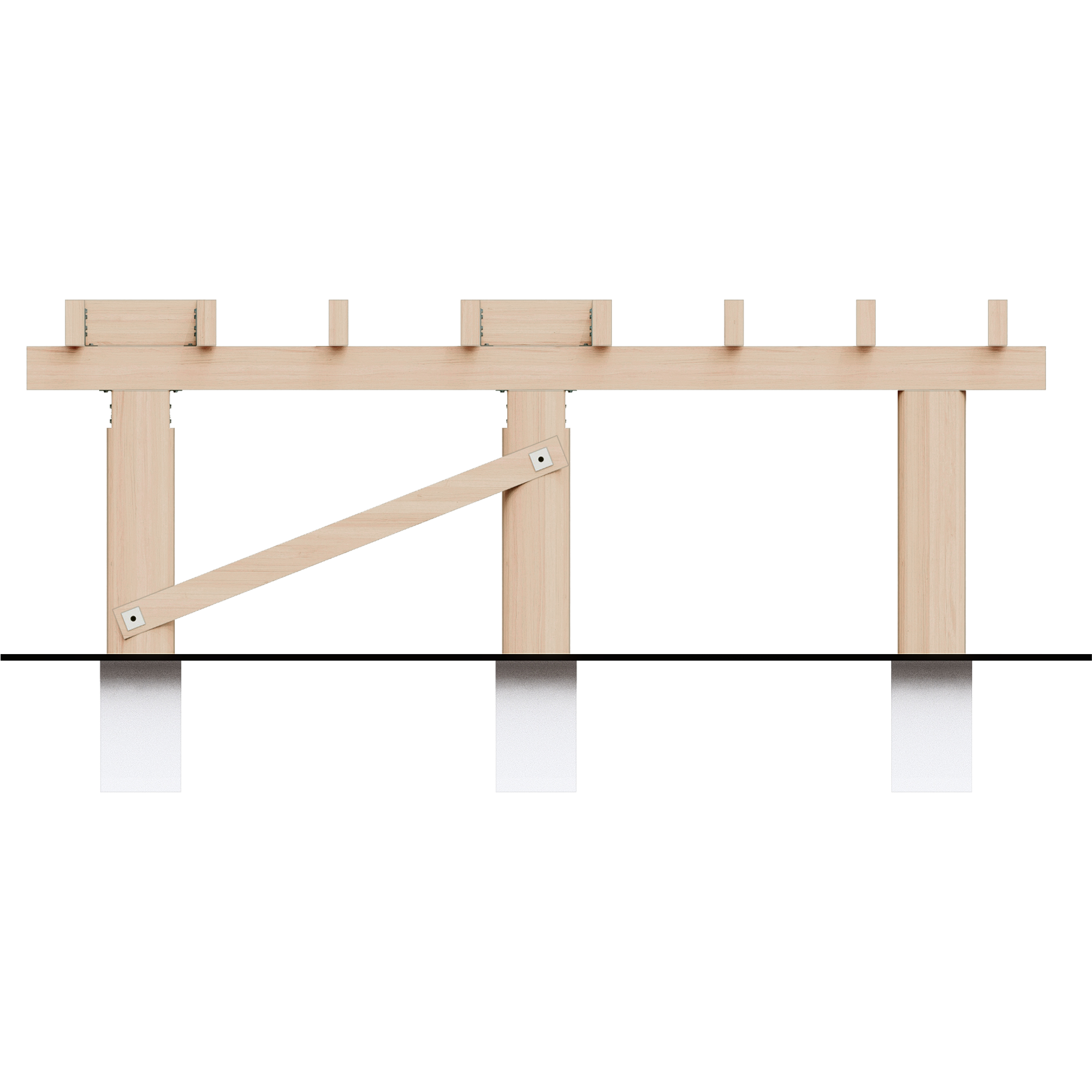

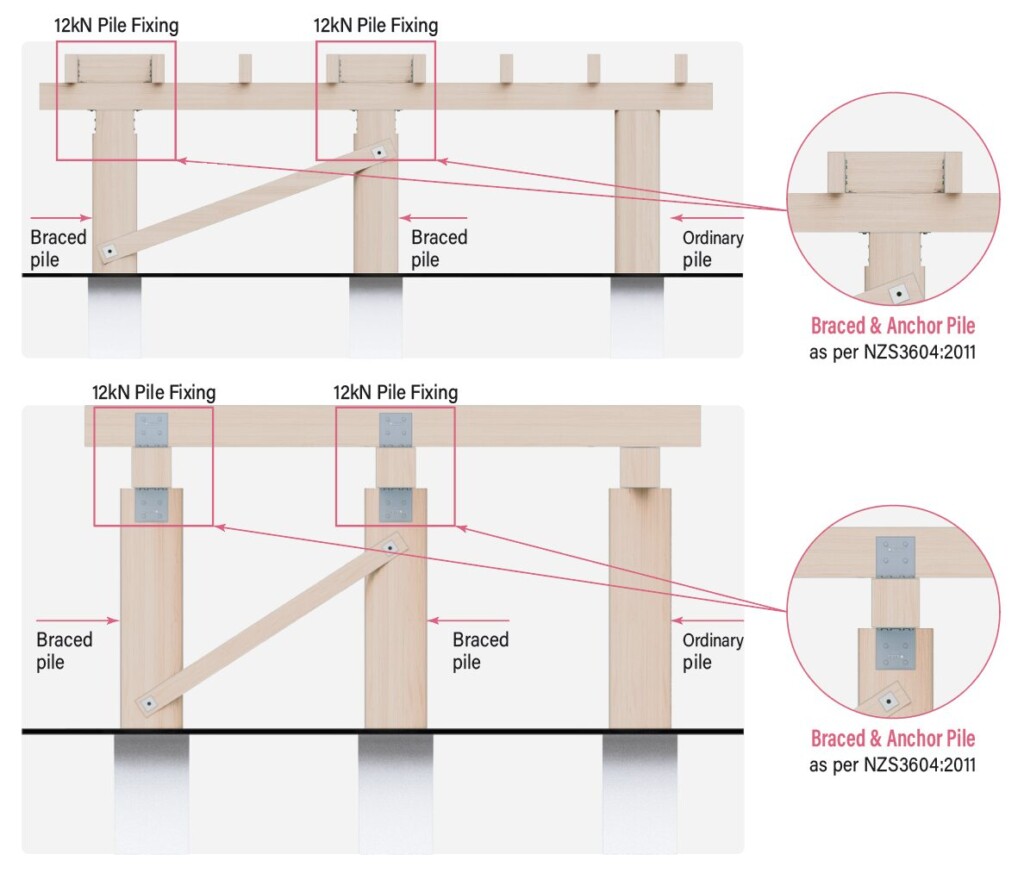

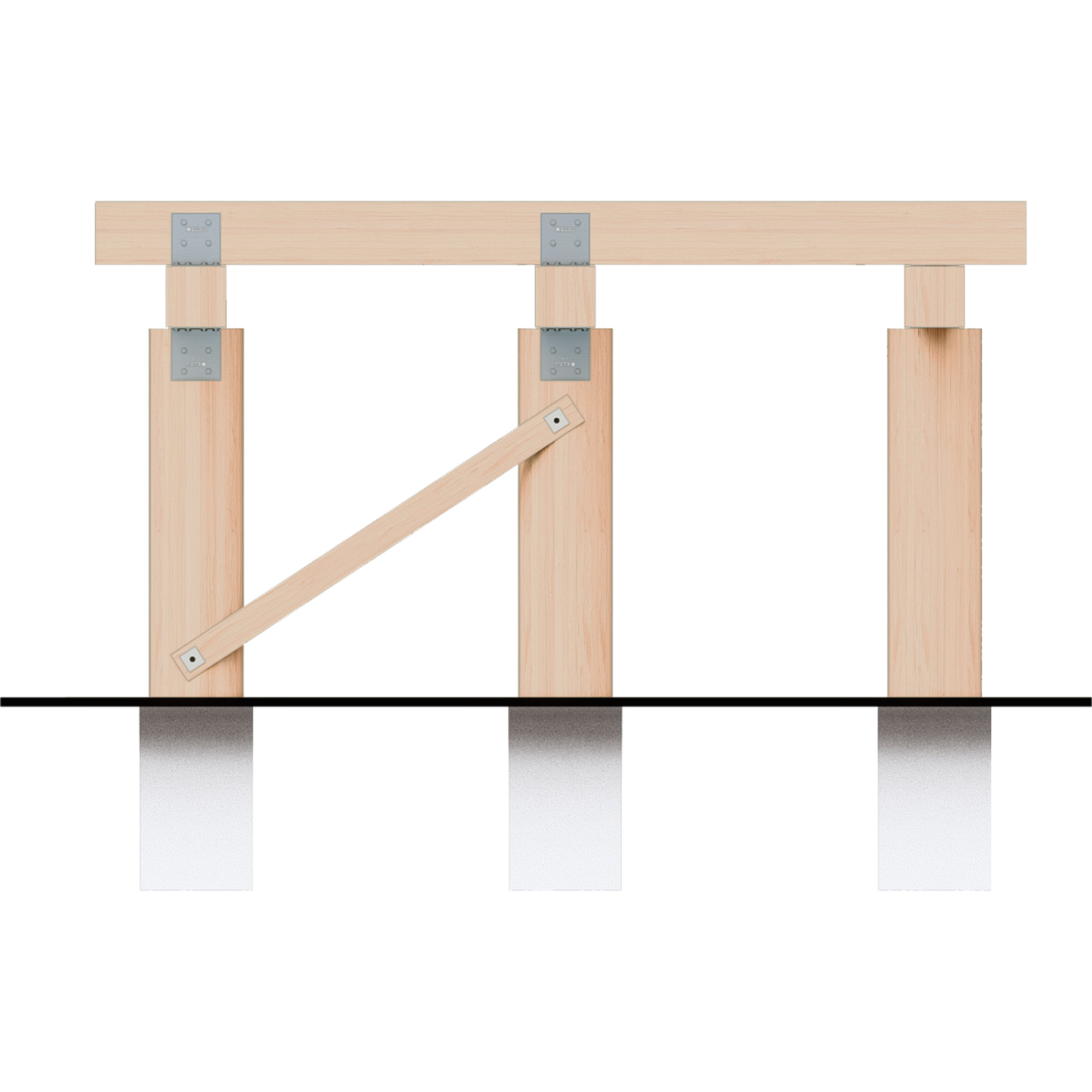

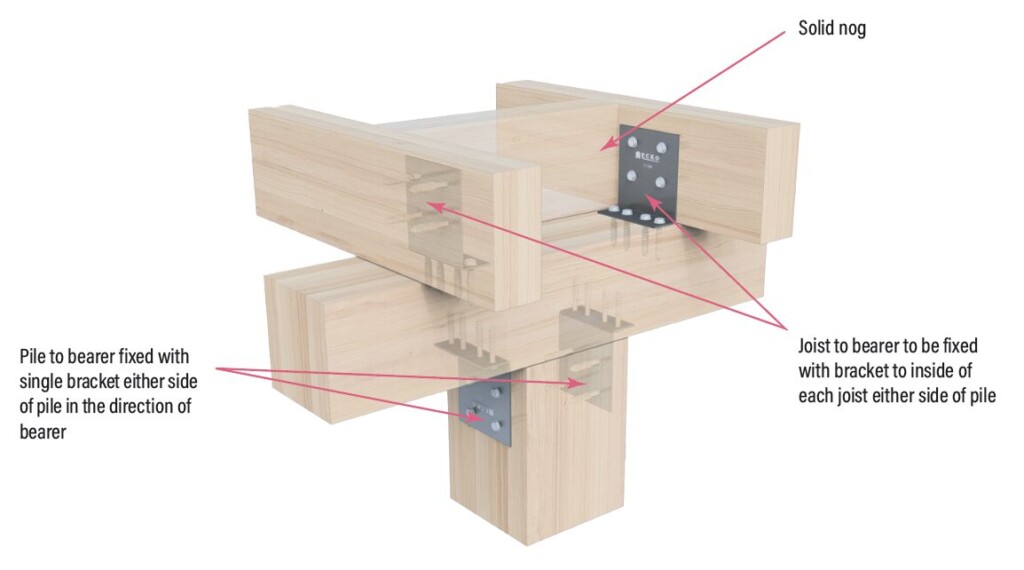

- Solid blocking is required directly over braced or anchor pile
- Lateral support to floor joists must be within 300mm of bearer or bracing lines (NZS3604)
- Round piles must be checked out to ensure bracket sits flush with pile Joists must be a minimum of 140mm
- Where possible bearer to be centrally located on pile Minimum pile size: 125 x 125mm square, 140mm round
- All bracket holes to be filled
