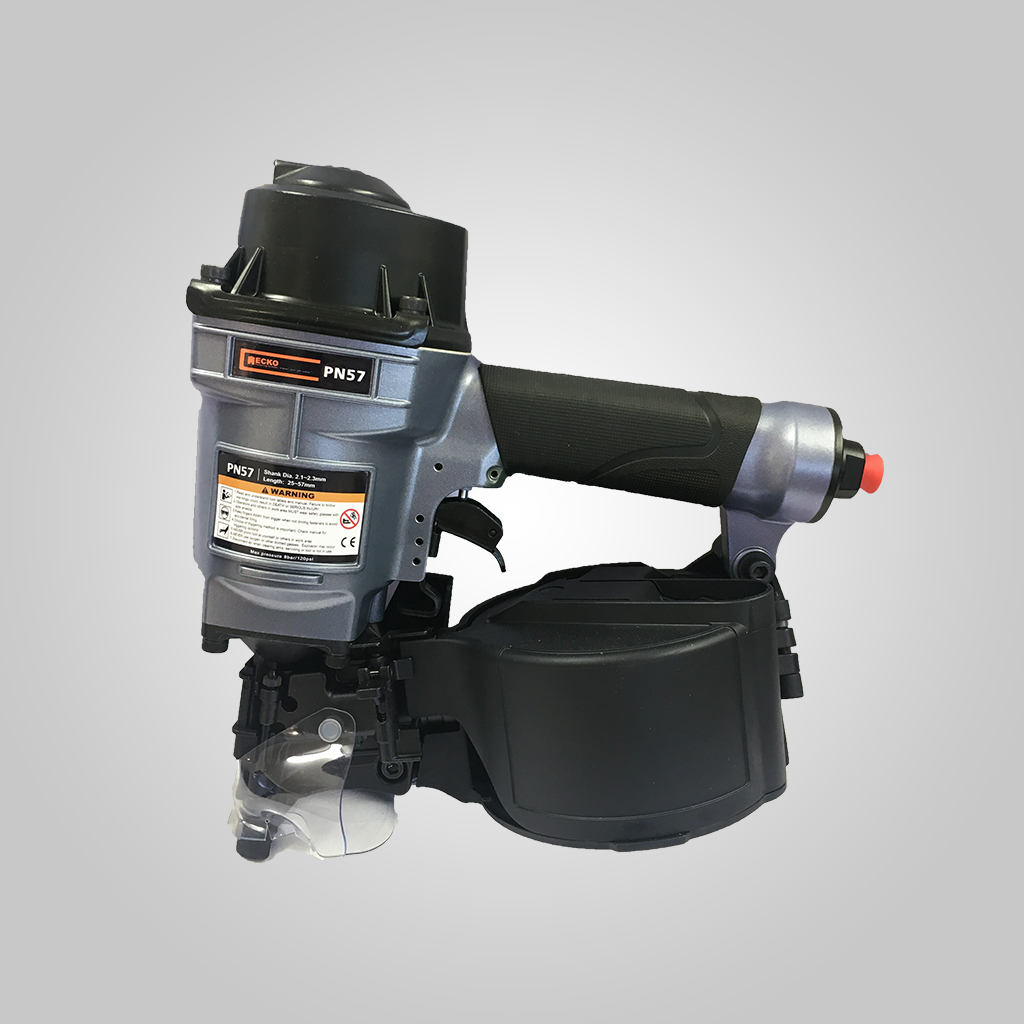

Coil Nailer PN57
Product Code: PN57
- Robust body design
- Single shot or bump fire
- Lightweight, magnesium body
- Tough nail magazine cover
- Large magazine capacity
- Anti double-fire mechanism
Fasteners
| Product Code | Size | Finish | Collation | Shank | Carton QTY |
| CNF-2132R | 32 x 2.1mm | Bright | Wire Coil Flat | Ring | 16,000 |
| CN-2527R | 27 x 2.5mm | Bright | Wire Coil | Ring | 9,000 |
| CN-2538R | 38 x 2.5mm | Bright | Wire Coil | Ring | 9,000 |
| CN-2545R | 45 x 2.5mm | Bright | Wire Coil | Ring | 9,000 |
| CN-2550R | 50 x 2.5mm | Bright | Wire Coil | Ring | 9,000 |
| CN-2850R | 50 x 2.8mm | Bright | Wire Coil | Ring | 6,000 |
| CNHP-2545R | 45 x 2.5mm | Galvanised | Wire Coil | Ring | 9,000 |
| CNHP-2850R | 50 x 2.8mm | Galvanised | Wire Coil | Ring | 6,000 |
| CNHP-30532R | 32 x 3.05mm | Galvanised | Wire Coil | Ring | 6,000 |
| CNHP-30540R | 40 x 3.05mm | Galvanised | Wire Coil | Ring | 6,000 |
| CNXI-2850R | 50 x 2.8mm | Bright | Maxi Wire Coil | Ring | 2500 x 2 |
Specifications
| Dimension | 270mm x 131mm x 283mm (L x W x H) |
| Weight | 2.6kg |
| Operating pressure | 100 - 120psi |
| Magazine capacity | 300 - 500nails |
| Fastener diameter | 2.1 - 3.33mm |
| Fastener length | 27 - 57mm |
| Applications | Pallet/Crate manufacturing Fencing Bed manufacturing Decking High volume timber Productions |
